ALLIED AIR: ALLIED COMMERCIAL SPLIT SYSTEM UNITS (TER 20-32199)


ALLIED AIR: ALLIED COMMERCIAL SPLIT SYSTEM UNITS (TER 20-32199)

$30.00$50.00 or ( 3 Tokens - 5 Tokens )

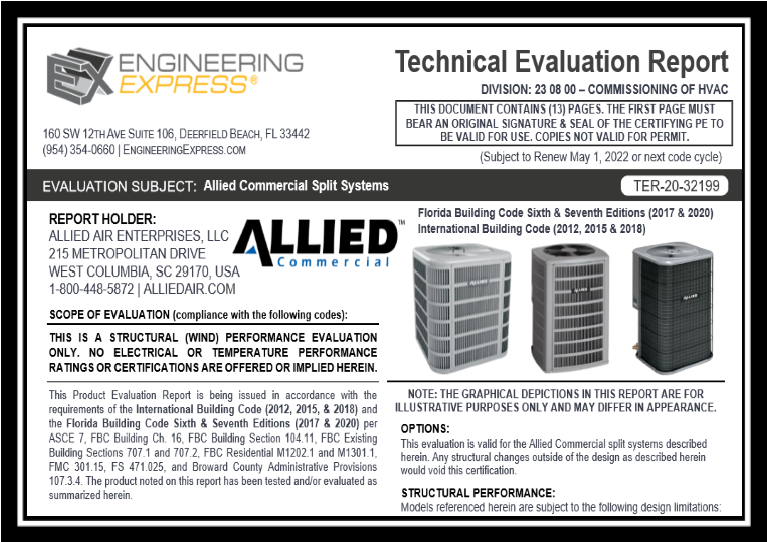

This certification is applicable to the Allied Air Allied Commercial Split System Units. The certification is sold as an engineered sealed Evaluation Report and meets the requirements of the structural wind integrity per the selected building code above using ASCE 7-10 & ASCE 7-16 for the approval of unit housing and tie-down clip capacities, and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it in conjunction with your other approved documents to obtain a building permit.

This certification is generic and installations beyond this scope or site specific applications shall require custom engineering that can be performed by Engineering Express. Click here to request a quote.

Models included in this TER:

Model Number Coil Protection Unit
Width
(in)
Unit
Depth
(in)
Unit
Height
(in)
ML14XP1-036-233A** Louver 28.25 28.25 37.25
ML14XP1-036-463A**
ML14XP1-042-233A** Louver 32.25 32.25 37.25
ML14XP1-042-463A**
ML14XP1-048-233A**
ML14XP1-048-463A**
ML14XP1-060-233A** Louver 32.25 32.25 43.25
ML14XP1-060-463A**
TSA036S4N43Y Wire Guard 24.25 24.25 29.25
TSA036S4N43G
TSA036S4N44Y
TSA036S4N44G
TSA042S4N43Y Wire Guard 28.25 28.25 29.25
TSA042S4N43G
TSA042S4N44Y
TSA042S4N44G
TSA060S4N43Y Wire Guard 28.25 28.25 33.25
TSA060S4N43G
TSA060S4N44Y
TSA060S4N44G
TSA048S4N43Y Wire Guard 28.25 28.25 37.25
TSA048S4N43G
TSA048S4N44Y
TSA048S4N44G

What is a TER and how is it used for permitting?

What’s the difference between a TER and a Miami Dade NOA or FL Product Approval?

What do I do if a TER isn’t enough for a permit?

What Doesn’t a TER Do?

For variations of this plan, click here – select ‘Revision To One Of Our Projects’ when asked, & reference the MPS SKU number listed herein.
