Aluminum Fence & Gate Master Plan Sheet- Horizontal Pickets

Store Home

Aluminum Fence & Gate Master Plan Sheet- Horizontal Pickets

$150.00$250.00 or ( 15 Tokens - 25 Tokens )

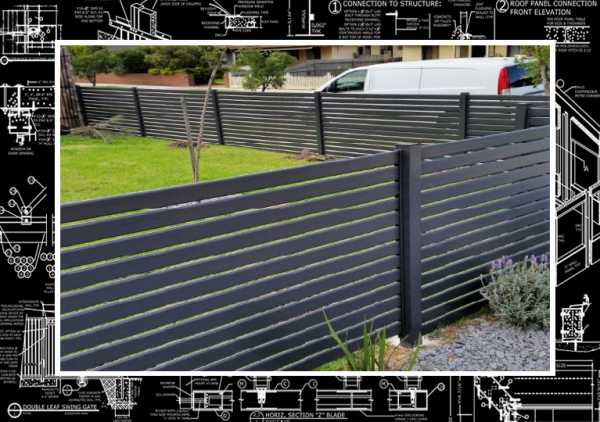

This certification is applicable to construct up to a 6′ high mechanically connected horizontal picket aluminum fence with single or double gates.  The plan contains multiple picket options with posts to concrete or soil. It has been designed to meet the requirements of current Building Codes and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it along with your other project documents to obtain a building permit. Residential Applications (up to 250′) please select the Residential Dropdown. Large Residential or Commercial Applications (up to 500′) please select the Large Residential / Commercial Dropdown. The plan is generic and not for any site-specific address & installations beyond the scope and limitations of this document shall require site-specific engineering.

For site-specific projects, plan customizations or California applications, click here to request a quote.

Read More
Please select the state you would like the document certified in
This field can't be Empty
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

Product Documents

Read Disclaimer & Important Information for Use
Weight 0.04 lbs
Dimensions 0.0100 × 17.0000 × 11.0000 in
Plan Format

Digitally Sealed File, Sealed Hardcopy

Plan Type

Master Plan Sheet – MPS



Plan Designer

Engineering Express


Large Residential and Commercial, Residential
