Weight | .64 lbs |
---|---|
Dimensions | .08 × 17 × 11 in |
Plan Format | Digitally Sealed E-Permit File, Raised Sealed Hardcopy |
Storefront | Allied, Engineering Express |
Material | PVC |
Plan Type | Master Plan Sheet – MPS, Manufacturer Plans |
Plan Designer | Engineering Express |
Brand | Barrette Outdoor Living, Inc. |

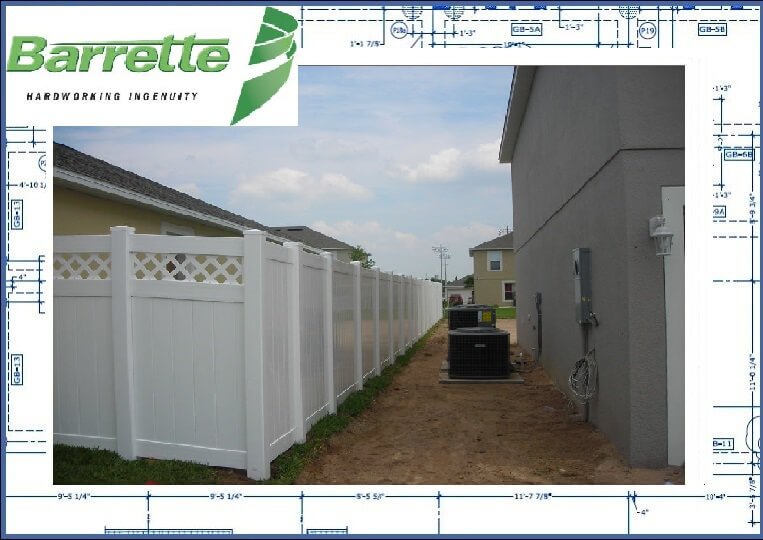

Barrette PVC Vinyl Fencing
Barrette PVC Vinyl Fencing
$150.00 – $200.00 or ( 15 Tokens - 20 Tokens )
This certified plan is applicable to the Barrette PVC Fence & Gate. It contains numerous dimensions, wind speed/pressure, and component options for many common Barrette applications. It is sold as an engineered sealed document and meets the requirements of the applicable building code using ASCE 7-16 for the approval of structural adequacy only. Use it in conjunction with your other approved documents to obtain a building permit.
This certification is sold as an engineered sealed document and meets the requirements of the current Building Codes. Use it in conjunction with your other approved documents to obtain a building permit. It is generic and installations beyond the scope and limitations of this document shall require site-specific engineering.
For projects beyond the limitations of this plan, click here to request a quote.
Product Documents
Engineering Drawings
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
