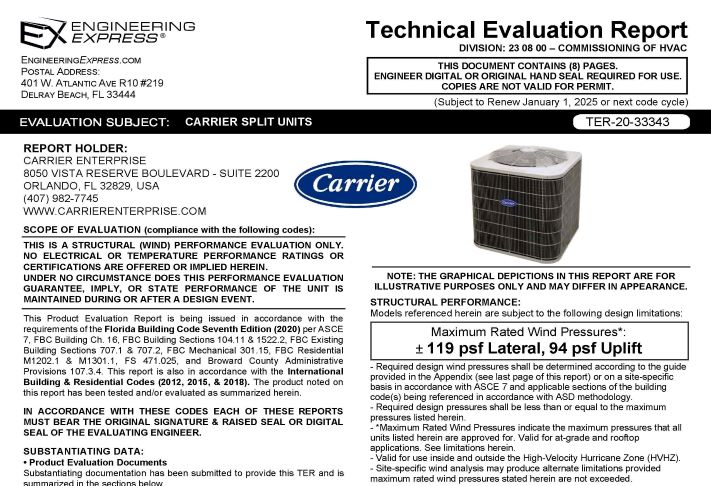

This certification applies to the CARRIER splits units. The certification is sold as an engineered sealed Evaluation Report and meets the requirements of the structural wind integrity per the selected building code for the approval of unit housing and tie-down clip capacities. Upon ordering, it will be signed and sealed by a Professional Engineer of the firm. Use it with your other approved documents to obtain a building permit. (Former TER 16-3190.1)
This product can be used with the following:
Unit Model
Unit Dimensions (in)
Width
Depth
Height
24AB*330
23.13
23.13
28.69
24AB*336
25.75
25.75
32.08
24AB*342
31.19
31.19
32.08
24AB*348
31.19
31.19
35.5
24AB*360
31.19
31.19
28.69
24AB*618
23.13
23.13
28.69
24AB*624
31.19
31.19
28.31
24AB*630
31.19
31.19
32.31
24AB*636
35
35
28.31
24AB*642
35
35
39.13
24AB*648
35
35
32.31
24AB*649
35
35
39.13
24AB*660
35
35
45.94
24AB*661
35
35
45.94
24AC*418
23.13
23.13
24.81
24AC*424
25.75
25.75
25
24AC*430
31.19
31.19
31.81
24AC*436
31.19
31.19
24.81
24AC*442
31.19
31.19
39.13
24AC*448
31.19
31.19
28.44
24AC*460
31.19
31.19
31.81
24SC*518W**3
25 3/4
25 3/4
28 11/16
24SC*524W**3
25 3/4
25 3/4
35 1/2
24SC*530W**3
31 3/16
31 3/16
35 1/2
24SC*536W**3
31 3/16
31 3/16
38 7/8
24SC*542W**3
31 3/16
31 3/16
32 1/16
24SC*548W**3
31 3/16
31 3/16
32 1/16
24SC*560W**3
31 3/16
31 3/16
38.875
24SP*618W**3
25 3/4
25 3/4
28 11/16
24SP*624W**3
25 3/4
25 3/4
35 1/2
24SP*630W**3
31 3/16
31 3/16
35 1/2
24SP*636W**3
31 3/16
31 3/16
38 7/8
24SP*642W**3
31 3/16
31 3/16
32 1/16
24SP*648W**3
31 3/16
31 3/16
32 1/16
24SP*649W**3
35
35
45 11/16
24SP*660W**3
31 3/16
31 3/16
38 7/8
24SP*661W**3
35
35
45 11/16
25HB*518
31.19
31.19
28.94
25HB*524
35
35
32.31
25HB*530
35
35
32.31
25HB*536
35
35
35.75
25HB*537
35
35
32
25HB*542
35
35
28.94
25HB*548
35
35
28.94
25HB*560
35
35
39.13
25HC*418
23.13
23.13
35.25
25HC*424
25.75
25.75
38.5
25HC*430
31.19
31.19
31.81
25HC*436
31.19
31.19
28.44
25HC*442
31.19
31.19
39.13
25HC*448
31.19
31.19
28.44
25HC*460
31.19
31.19
31.81
25SC*518A**3
31 3/16
31 3/16
28 11/16
25SC*524A**3
31 3/16
31 3/16
32 1/16
25SC*530A**3
31 3/16
31 3/16
28 11/16
25SC*536A**3
31 3/16
31 3/16
28 11/16
25SC*542A**3
31 3/16
31 3/16
32 1/16
25SC*548A**3
31 3/16
31 3/16
35 1/2
25SC*560A**3
35
35
38 7/8
25SP*518A**3
31 3/16
31 3/16
28 11/16
25SP*524A**3
31 3/16
31 3/16
32 1/16
25SP*530A**3
31 3/16
31 3/16
28 11/16
25SP*536A**3
31 3/16
31 3/16
28 11/16
25SP*542A**3
31 3/16
31 3/16
32 1/16
25SP*548A**3
31 3/16
31 3/16
35 1/2
25SP*560A**3
35
35
38 7/8
25TP*724A**3
35
35
35 1/2
25TP*736A**3
35
35
38 7/8
25TP*748A**3
35
35
45 11/16
25TP*760A**3
35
35
45 11/16
CA14**18
23.13
23.13
24.81
CA14**24
25.75
25.75
25
CA14**30
31.19
31.19
31.81
CA14**36
31.19
31.19
24.81
CA14**42
31.19
31.19
39.13
CA14**48
31.19
31.19
28.44
CA14**60
31.19
31.19
31.81
CA16**18
31.19
31.19
28.44
CA16**24
31.19
31.19
28.44
CA16**30
31.19
31.19
31.81
CA16**36
35
35
28.44
CA16**37
35
35
29.69
CA16**42
35
35
39.13
CA16**48
35
35
39.13
CA16**60
35
35
45.94
CA16**61
35
35
45.68
CA17**024
31.19
31.19
35.75
CA17**036
31.19
31.19
35.75
CA17**048
35
35
38.88
CA17**060
35
35
38.88
CH14**018
23.13
23.13
35.25
CH14**024
25.75
25.75
35.25
CH14**030
31.19
31.19
31.81
CH14**036
31.19
31.19
28.44
CH14**042
31.19
31.19
39.13
CH14**048
31.19
31.19
28.44
CH14**060
31.19
31.19
31.81
GA5S*N418**W
25 3/4
25 3/4
28 11/16
GA5S*N424**W
25 3/4
25 3/4
35 1/2
GA5S*N430**W
31 3/16
31 3/16
35 1/16
GA5S*N436**W
31 3/16
31 3/16
38 7/16
GA5S*N442**W
31 3/16
31 3/16
31 11/16
GA5S*N448**W
31 3/16
31 3/16
31 11/16
GA5S*N449**W
35
35
45 11/16
GA5S*N460**W
31 3/16
31 3/16
38 7/16
GA5S*N461**W
35
35
45 11/16
GA7T*N424**W
31 3/16
31 3/16
35 1/2
GA7T*N436**W
35
35
32 1/16
GA7T*N448**W
35
35
38 7/8
GA7T*N460**W
35
35
38 7/8
GH5S*N418**A
31 3/16
31 3/16
28 1/4
GH5S*N424**A
31 3/16
31 3/16
31 11/16
GH5S*N430**A
31 3/16
31 3/16
28 1/4
GH5S*N436**A
31 3/16
31 3/16
29 1/4
GH5S*N442**A
31 3/16
31 3/16
31 11/16
GH5S*N448**A
31 3/16
31 3/16
35 1/16
GH5S*N460**A
35
35
38 7/8
Read MoreRead Less
This field can't be Empty
This field can't be Empty
Read Disclaimer & Important Information for Use
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
