Carrier: Split Units Evaluation (TER 20-33346)
Carrier: Split Units Evaluation (TER 20-33346)

Carrier: Split Units Evaluation (TER 20-33346)

$60.00 – $80.00 or ( 6 Tokens - 8 Tokens )

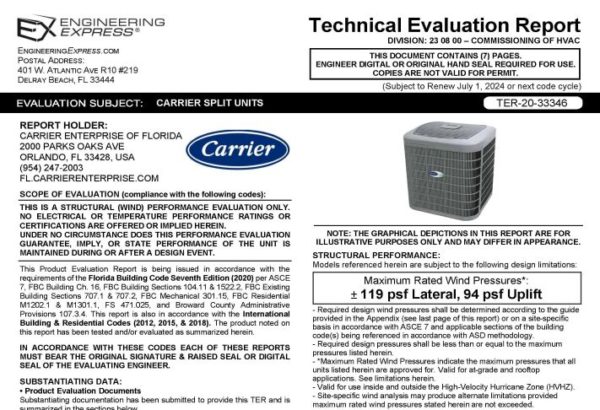

This certification applies to the CARRIER splits units. The certification is sold as an engineered sealed Evaluation Report and meets the requirements of the structural wind integrity per the selected building code for the approval of unit housing and tie-down clip capacities. Upon ordering, it will be signed and sealed by a Professional Engineer of the firm. Use it with your other approved documents to obtain a building permit. (Former TER 16-3190.2)
