Channel Sign with Raceway – Master Plan Sheet


Channel Sign with Raceway – Master Plan Sheet

$50.00 or ( 5 Tokens )

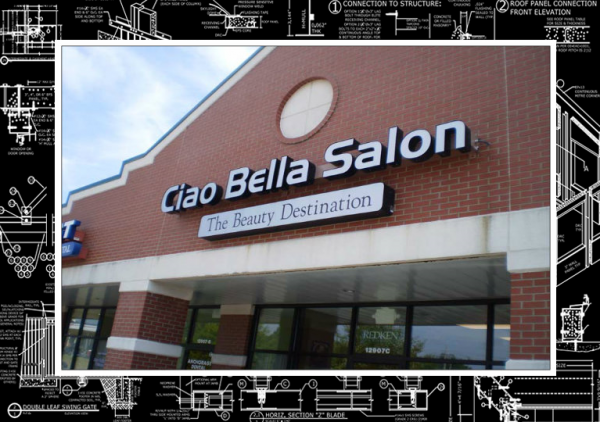

This Master Plan Sheet (MPS) certifies your Channel Sign with Raceway up to 60 feet in elevation and maximum roof heights of 60 feet. Upon ordering, this document will be signed and sealed by a Professional Engineer. Use it along with your other project documents to obtain a building permit. This plan is more generic and installation.

For projects beyond the limitations of this plan, request a custom quote for more detailed site-specific project requests by clicking here by using our smart order system. For variations of this plan, click here – select ‘Revision To One Of Our Projects’ when asked, & reference the MPS SKU number listed herein.

Also visit EngineeringExpress.com/Signs for more sign information, plans, calculators & resources

This certification is generic and installations beyond this scope, site-specific, or California applications shall require custom engineering that can be performed by Engineering Express. Click here to request a quote.
This field can't be Empty
This field can't be Empty
Clear
Show Favorites View Sample
Note: Effective June 1, 2021 licensing fees are added to all calculator and plan orders

Product Documents

Weight0.04 lbs
Dimensions0.0100 × 17.0000 × 11.0000 in
Material

Aluminum, Concrete, Glass, Wood

Plan Designer

Engineering Express

Plan Format

Digitally Sealed File, Sealed Hardcopy

Plan Type

Illuminated Channel Sign Attachment, Non-Illuminated Channel Sign Attachment
