DAIKIN: VRV Models (TER 20-29886)

$40.00$80.00 or ( 4 Tokens - 8 Tokens )

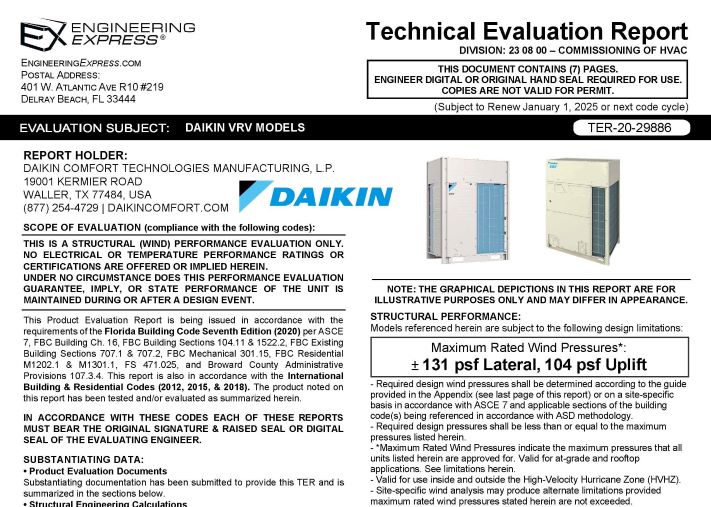

This certification is applicable to the DAIKIN VRV unit types.  The certification is sold as an engineered sealed Evaluation Report and meets the requirements of the structural wind integrity per the selected building code above using ASCE 7-10 & ASCE 7-16 for the approval of unit housing and tie-down clip capacities, and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it in conjunction with your other approved documents to obtain a building permit.

Applicable models:

Cabinet
Group
Model
Number
Unit Dimensions (in) Weight Range
(lb)
Width  Depth Height
M1 REYQ72T* 36.69 30.19 66.69 460 – 560
RXYQ72T* 36.69 30.19 66.69 460 – 560
RXYQ72X* 36.69 30.19 66.69 460 – 560
L1 REYQ96-120T* 48.88 30.19 66.69 650 – 750
REYQ72-120X* 48.88 30.19 66.69 650 – 750
RXYQ96-120T* 48.88 30.19 66.69 650 – 750
RXYQ96-120X* 48.88 30.19 66.69 650 – 750
REYQ144-168T* 48.88 30.19 66.69 730 – 830
REYQ144-168X* 48.88 30.19 66.69 730 – 830
RXYQ144-168T* 48.88 30.19 66.69 730 – 830
RXYQ144-168X* 48.88 30.19 66.69 730 – 830
M2 REYQ72A* 36-5/8 30-1/8 65-3/8 460 – 560
L2 REYQ96-168A* 48-13/16 30-1/8 65-3/8 660 – 800
XL REYQ192-240A* 68-7/8 30-1/8 65-3/8 910 – 1010
Read More
This field can't be Empty
This field can't be Empty

Read Disclaimer & Important Information for Use
Weight 0.8000 lbs
Dimensions 0.0450 × 11.0000 × 8.5000 in
Plan Format

Digitally Sealed File, Sealed Hardcopy

Brand

daikin

Plan Designer

Engineering Express

Plan Type

Technical Evaluation Report-TER, Manufacturer Plans
