DiversiTech: Double Concrete Generator Pad (MPS 20-29715)


DiversiTech: Double Concrete Generator Pad (MPS 20-29715)

$30.00$40.00 or ( 3 Tokens - 4 Tokens )

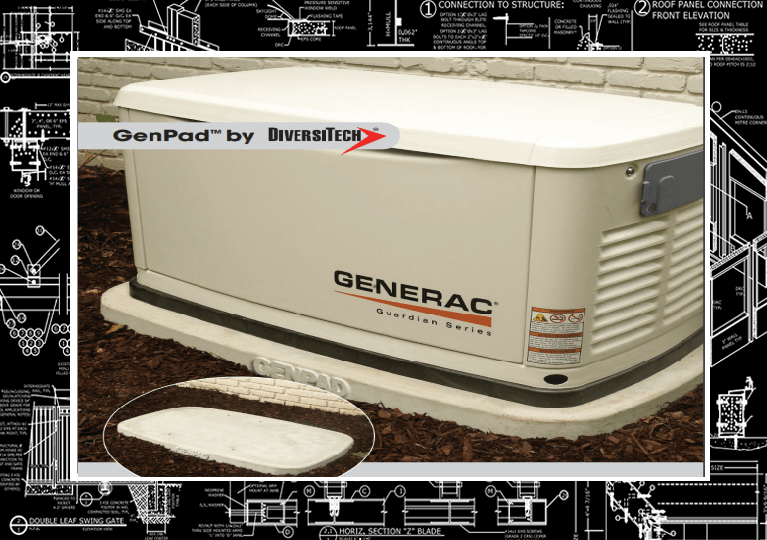

This certification is applicable to the DiversiTech Double Concrete Generator Pads  FG7037-4G, 8341-4G, & 9041-4G  and is available as a drawing detail with a chart listing approved sizes and wind pressure loads. The certification is sold as an engineered sealed document and meets the requirements of the selected building code above,  and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it in conjunction with your other approved documents to obtain a building permit.

This certification is generic and installations beyond this scope or site specific applications shall require custom engineering that can be performed by Engineering Express. Click here to request a quote. Be sure to compare the allowable wind pressure capacities listed in the drawing to those that are applicable to your project site.

COMPANY Capacity DIMENSIONS (IN) MIN. WEIGHT (LBS)
WIDTH  LENGTH HEIGHT
GENERAC 22 31 62 39 905
GENERAC 27 31 62 39 940
GENERAC 25 31 62 39 865
GENERAC 25 31 62 39 777
GENERAC 30 31 62 39 895
GENERAC 30 31 62 39 807
GENERAC 32 35 77 46 1225
GENERAC 38 35 77 46 1235
GENERAC 38 35 77 46 1255
GENERAC 36 35 77 46 1202
GENERAC 45 35 77 46 1313
GENERAC 45 35 77 46 1260
GENERAC 24 35 77 46 1283
GENERAC 24 35 77 46 1230
GENERAC 48 35 83 46 1781
