Weight | 0.5 lbs |
---|---|
Dimensions | 0.01 × 17 × 11 in |
Plan Format | Digitally Sealed File, Sealed Hardcopy |
Brand | Frozen Beverage Dispensers, Miami Tech |
Plan Designer | Engineering Express |
Plan Type | Master Plan Sheet – MPS, Manufacturer Plans |
Miami Tech: Wall Bracket AC Mount – Standard Duty
Store Home
Read MoreRead Less
Read Disclaimer & Important Information for Use
Miami Tech: Wall Bracket AC Mount – Standard Duty
$60.00 – $80.00 or ( 6 Tokens - 8 Tokens )

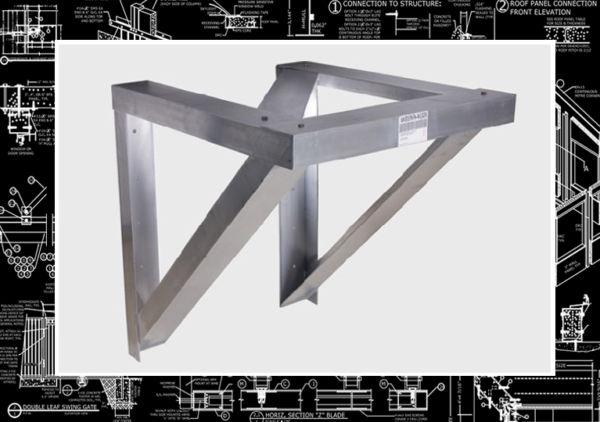

This product is available for purchase as a sealed drawing to certify structural components of this standard duty wall mounted A/C stand manufactured only by Miami Tech. The certification meets the requirements of the selected building code above using ASCE 7-10 & ASCE 7-16 up to a design pressure of 90psf.
Use the heavy duty wall mount which certifies installations up to 170psf.
Use it in conjunction with your other approved documents to obtain a building permit.
Note: The host structure, vibratory loads, connection & integrity of the A/C unit are outside the scope of this certification.
Product Documents
Sample Documents
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
