Weight | .48 lbs |
---|---|
Dimensions | 0.01 × 17 × 11 in |
Plan Format | Digitally Sealed File, Sealed Hardcopy |
Plan Type | Master Plan Sheet – MPS, Manufacturer Plans |
Material | Concrete |
Brand | PrecastPads |
Plan Designer | Engineering Express |
Storefront | precastpads, Engineering Express |

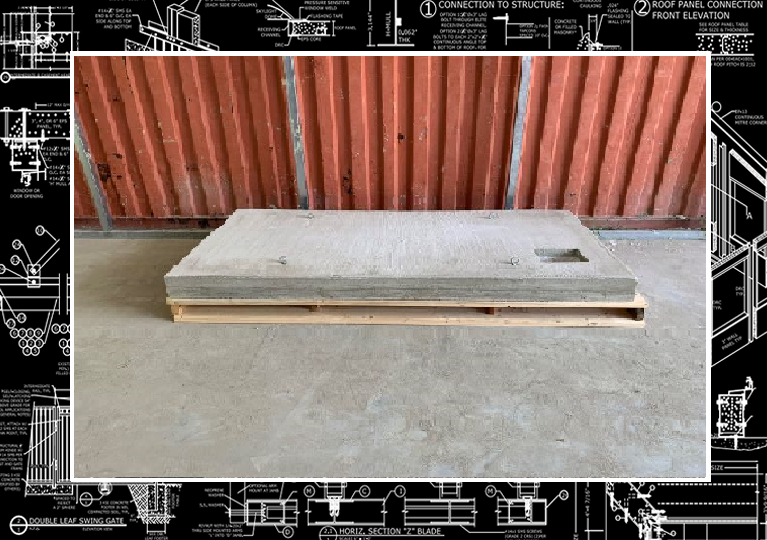

Pad Depot: 45 x 93 x 5.5 Foam Core Generator Pad
$30.00 – $60.00 or ( 3 Tokens - 6 Tokens )
This certification is applicable to Pad Depot 45 x 93 x 5.5 Foam Core Generator Pad and is available as a sealed drawing. The certification is sold as an engineered sealed document and meets the requirements of the selected building code above using ASCE 7 for the approval of structural adequacy only, based on the limitations stated, and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use this plan in conjunction with your other approved documents to obtain a permit from the Building Department.
Installation variations and site-specific drawings outside the scope of this plan can be quoted using our online smart request form by clicking here.
BRANDS & MODELS FOR PERMIT COVERED WITH THIS PLAN
COMPANY | CAPACITY | MODEL | DIMENSIONS | |||
W, IN | L, IN | H, IN | WT, LB | |||
GENERAC | 24 KW | RG6024 OR SIMILAR | 77 | 35 | 47 | 1230 |
GENERAC | 30 KW | RG3824 OR SIMILAR | 77 | 35 | 47 | 1235 |
GENERAC | 32 KW | RG032 OR SIMILAR | 77 | 35 | 47 | 1225 |
GENERAC | 36 KW | RG036 OR SIMILAR | 77 | 35 | 47 | 1202 |
GENERAC | 36 KW | QT 03624 ANAX OR SIMILAR | 77 | 34 | 45 | 1271 |
GENERAC | 38 KW | RG038-AL OR SIMILAR | 77 | 35 | 47 | 1235 |
GENERAC | 45 KW | RG045-AL OR SIMILAR | 77 | 35 | 47 | 1260 |
GENERAC | 45 KW | QT 04524 ANSX OR SIMILAR | 77 | 34 | 45 | 1414 |
GENERAC | 48 KW | QT 04854 ANAX OR SIMILAR | 77 | 34 | 45 | 1516 |
GENERAC | 48 KW | RG048-AL OR SIMILAR | 84 | 35 | 46 | 1781 |
GENERAC | 60 KW | QT 06024 OR SIMILAR | 77 | 34 | 45 | 1324 |
GENERAC | 60 KW | QT 06030 OR SIMILAR | 77 | 35 | 47 | 1324 |
GENERAC | 60 KW | RG060 / ALUM OR SIMILAR | 77 | 35 | 47 | 1422 |
GENERAC | 60 KW | RG060 / STEEL OR SIMILAR | 77 | 35 | 47 | 1539 |
KOHLER | 38 KW | 38RCL OR SIMILAR | 90 | 33 | 46 | 1740 |
KOHLER | 48 KW | 48RCL OR SIMILAR | 90 | 34 | 46 | 1900 |
KOHLER | 60 KW | 60RCL OR SIMILAR | 90 | 33 | 46 | 1660 |
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
