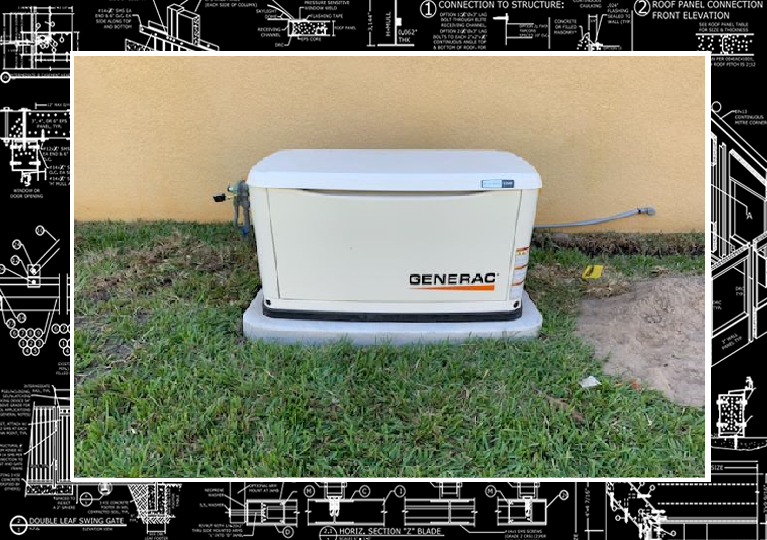

Pad Depot: 54 x 32 x 4 Foam Core Generator Pad
Store Home
Read MoreRead Less
Read Disclaimer & Important Information for Use
Pad Depot: 54 x 32 x 4 Foam Core Generator Pad
$30.00 or ( 3 Tokens )
This certification is applicable to Pad Depot 54 x 32 x 4 Foam Core Generator Pad and is available as a sealed drawing. The certification is sold as an engineered sealed document and meets the requirements of the selected building code above using ASCE 7 for the approval of structural adequacy only, based on the limitations stated, and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use this plan in conjunction with your other approved documents to obtain a permit from the Building Department.
Installation variations and site-specific drawings outside the scope of this plan can be quoted using our online smart request form by clicking here.
BRANDS & MODELS FOR PERMIT COVERED WITH THIS PLAN
COMPANY | CAPACITY | MODEL | DIMENSIONS | |||
W, IN | L, IN | H, IN | WT, LB | |||
GENERAC | 10 KW | GUARDIAN 5882, 7171 OR SIMILAR | 48 | 25 | 29 | 338 |
GENERAC | 14 KW | GUARDIAN 7223, 7224, 7225, OR SIMILAR | 48 | 25 | 29 | 385 |
GENERAC | 16 KW | GUARDIAN 7176, 7177, 7178, OR SIMILAR | 48 | 25 | 29 | 420 |
GENERAC | 17 KW | GUARDIAN 5873, 5885, OR SIMILAR | 48 | 25 | 29 | 420 |
GENERAC | 18 KW | GUARDIAN 7226, 7228, OR SIMILAR | 48 | 25 | 29 | 420 |
GENERAC | 20 KW | GUARDIAN 7038, 7039, 7077, OR SIMILAR | 48 | 25 | 29 | 436 |
GENERAC | 22 KW | GUARDIAN 7042, 7043, OR SIMILAR | 48 | 25 | 29 | 455 |
GENERAC | 24 KW | GUARDIAN 7209, 7210, OR SIMILAR | 48 | 25 | 29 | 455 |
GENERAC | 26 KW | GUARDIAN 7290, 7291, OR SIMILAR | 48 | 25 | 29 | 518 |
KOHLER | 14 KW | 14 RCA OR SIMILAR | 47 | 26 | 33 | 440 |
KOHLER | 14 KW | 14 RCA OR SIMILAR | 47 | 26 | 33 | 490 |
KOHLER | 14 KW | 14 RCA OR SIMILAR | 48 | 26 | 29 | 420 |
KOHLER | 14 KW | 14 RCA OR SIMILAR | 48 | 26 | 29 | 467 |
KOHLER | 20 KW | 20 RCA OR SIMILAR | 47 | 26 | 33 | 555 |
KOHLER | 20 KW | 20 RCA OR SIMILAR | 47 | 26 | 33 | 600 |
KOHLER | 20 KW | 20 RCA OR SIMILAR | 48 | 26 | 29 | 535 |
KOHLER | 20 KW | 20 RCA OR SIMILAR | 48 | 26 | 29 | 580 |
