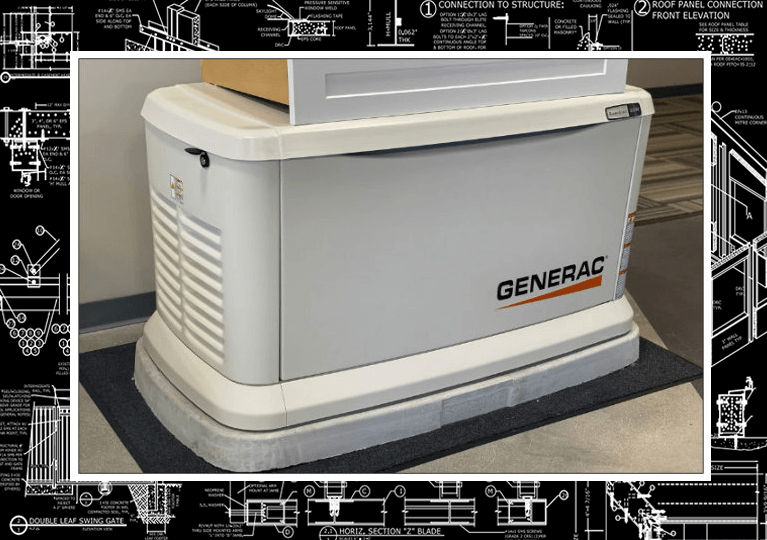

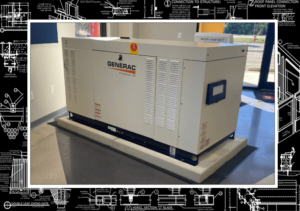

Precast Pads: 50 x 108 x 6 Foam Core Dual Pad (MPS 20-27951)


Precast Pads: 50 x 108 x 6 Foam Core Dual Pad (MPS 20-27951)

$40.00$60.00 or ( 4 Tokens - 6 Tokens )

This certification is applicable to Precast Pads 50 x 108 x 6 Foam Core Generator Dual Pad and is available as a sealed drawing. The certification is sold as an engineered sealed document and meets the requirements of the selected building code above using ASCE 7 for the approval of structural adequacy only, based on the limitations stated, and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use this plan in conjunction with your other approved documents to obtain a permit from the Building Department.

Please note: These plans are certified for Florida ONLY.

Installation variations and site-specific drawings outside the scope of this plan can be quoted using our online smart request form by clicking here.

BRANDS & MODELS FOR PERMIT COVERED WITH THIS PLAN

COMPANY Capacity MODEL DIMENSIONS (IN) MIN. WEIGHT (LBS)
WIDTH  LENGTH HEIGHT
GENERAC 48 KW RD048 35.0 95.0 57.0 2197
KOHLER 48 KW 48RCLA 32.9 89.8 45.1 1800
KOHLER 60 KW 60RCL 32.9 89.8 46.5 1960
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
This field can't be Empty
This field can't be Empty
Clear

Product Documents

Weight .48 lbs
Dimensions 0.01 × 17 × 11 in
Plan Format

Digitally Sealed File, Sealed Hardcopy

Plan Type

Master Plan Sheet – MPS, Manufacturer Plans

Material

Concrete

Brand

PrecastPads

Plan Designer

Engineering Express

Storefront

precastpads, Engineering Express
