Samsung: Commercial Air Conditioning (CAC) Outdoor Units

$40.00$80.00 or ( 4 Tokens - 8 Tokens )

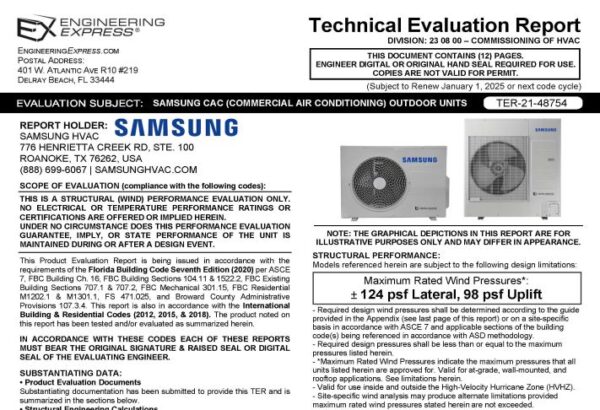

This certification is applicable to the Samsung Commercial Air Conditioning (CAC) Outdoor unit.  The certification is sold as an engineered sealed Evaluation Report and meets the requirements of the structural wind integrity per the selected building code above using ASCE 7 for the approval of unit housing and tie-down clip capacities, and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it in conjunction with your other approved documents to obtain a building permit.

Applicable models:



Model
Number
Unit Dimensions [in] (mm)
Width  Height Depth
AC009BXADCH 31.10 (790) 21.57 (548) 11.22 (285)
AC012BXADCH 31.10 (790) 21.57 (548) 11.22 (285)
AC018BXADCH 34.64 (880) 31.42 (798) 12.20 (310)
AC024BXADCH 37.00 (940) 39.30 (998) 13.00 (330)
AC030BXADCH 37.00 (940) 39.30 (998) 13.00 (330)
AC036BXADCH 37.00 (940) 47.6 (1210) 13.00 (330)
AC042BXADCH 37.00 (940) 47.6 (1210) 13.00 (330)
AC048BXADCH 37.00 (940) 47.6 (1210) 13.00 (330)
AC018BXSCCC 34.64 (880) 31.42 (798) 12.20 (310)
AC024BXSCCC 37.00 (940) 39.30 (998) 13.00 (330)
AC030BXSCCC 37.00 (940) 39.30 (998) 13.00 (330)
AC036BXSCCC 37.00 (940) 47.6 (1210) 13.00 (330)
Read More
This field can't be Empty
This field can't be Empty
Clear

Read Disclaimer & Important Information for Use
Weight 0.8000 lbs
Dimensions 0.0450 × 8.5000 × 11.0000 in
Brand

Samsung

Plan Designer

Engineering Express

Plan Type

Technical Evaluation Report-TER, Manufacturer Plans

Plan Format

Digitally Sealed File, Sealed Hardcopy
