3″ Modular Rooms- Glass Wall Room System (MPS 20-25244)


3″ Modular Rooms- Glass Wall Room System (MPS 20-25244)

$50.00 or ( 5 Tokens )

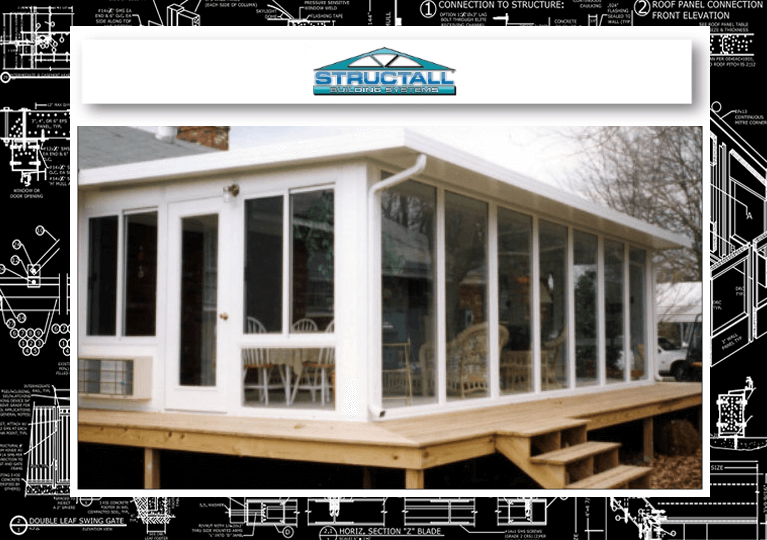

This certification is applicable to Structall’s 3″ Modular Glass Wall Room (Monoslope Roof). It contains numerous dimension, wind speed/pressure, and component options for many common Structall applications. It is sold as an engineered sealed document and meets the requirements of the applicable building code using ASCE 7-10 & ASCE 7-16 for the approval of structural adequacy only. Use it in conjunction with your other approved documents to obtain a building permit.

This certification is generic and installations beyond this scope or site specific applications shall require custom engineering that can be performed by Engineering Express. Click here to request a quote.

For states not listed here, please contact us.

This field can't be Empty
This field can't be Empty
Clear
Show Favorites View Sample
Note: Effective June 1, 2021 licensing fees are added to all calculator and plan orders

Weight 0.64 lbs
Dimensions 0.08 × 17 × 11 in
Plan Format

Digitally Sealed File, Sealed Hardcopy

Plan Type

Master Plan Sheet – MPS, Manufacturer Plans

Brand

Structall Building Systems, Inc.

Material

Aluminum, EPS

Storefront

Structall, Engineering Express

Product Documents

Engineering Drawings
