Weight | 0.04 lbs |
---|---|
Dimensions | 0.0100 × 17.0000 × 11.0000 in |
Plan Format | Digitally Sealed File, Sealed Hardcopy |
Plan Type | Master Plan Sheet – MPS, Manufacturer Plans |
Plan Designer | Engineering Express |
Type | Residential, Large Residential and Commercial |
Material | Steel |
Welded Steel Fence & Gate Master Plan Sheet (MPS 20-35523)
Welded Steel Fence & Gate Master Plan Sheet (MPS 20-35523)
$150.00 – $250.00 or ( 15 Tokens - 20.5 Tokens )

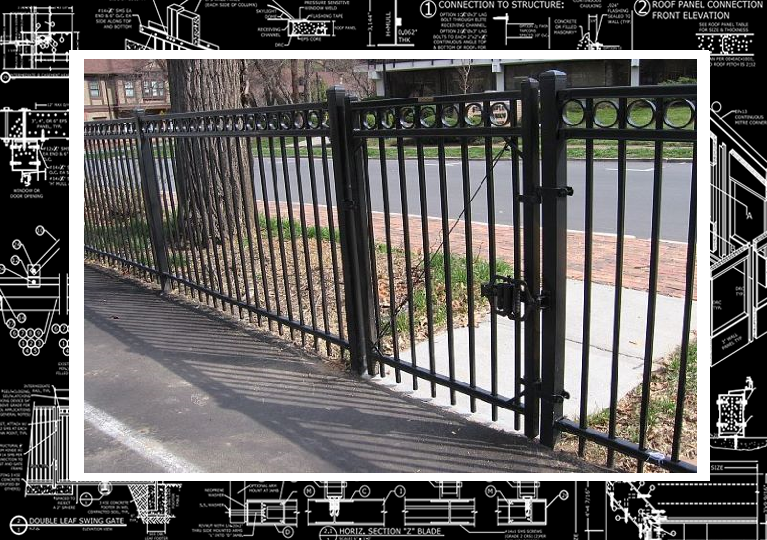

This fence master plan sheet certifies up to a 8′ max height welded steel fence and gate with various footer and picket options.
This document has been designed to meet the requirements of the selected Building Code and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it along with your other project documents to obtain a building permit. It is generic and installations beyond the scope and limitations of this document shall require site specific engineering.
Residential Applications (up to 250′) please select the Residential Dropdown. Large Residential or Commercial Applications (up to 500′) please select the Large Residential / Commercial Dropdown.
For site specific projects, click here to request a quote.
Product Documents
Sample Documents
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
