Weight | 0.04 lbs |
---|---|
Dimensions | 0.0100 × 17.0000 × 11.0000 in |
Plan Format | Digitally Sealed File, Sealed Hardcopy |
Plan Type | Master Plan Sheet – MPS |
Plan Designer | Engineering Express |
Welded Steel Ramp Railing (MPS 20-35487)
Store Home
Read MoreRead Less
Read Disclaimer & Important Information for Use
Welded Steel Ramp Railing (MPS 20-35487)
$225.00 – $300.00 or ( 22.5 Tokens - 30 Tokens )
This certification is applicable to a 34″-38″ high steel welded ramp guide rail. It has been designed to meet the requirements of the selected Building Code (including Broward & Dade Counties, FL) and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it in conjunction with your other approved documents to obtain a building permit.
HOW THIS PLAN IS USED:
- Purchase and receive a signed and sealed copy of this plan to be used for permit.
- As this is NOT site-specific, a design professional (such as the architect or engineer of record) must approve the applicability of this product to a site specific address. This document alone is NOT to be used to obtain a permit without approval for use as a site-specific application.
- Obtain your permit and install the product. The installation will be field reviewed for compliance with the architectural and master plans. Any discrepancies shall require a full site-specific evaluation by this firm or a determination by others that modifications are acceptable/how to repair. Any modifications to our plans become the responsibility of others.
It is recommended that site-specific plans be generated for this type of work. This is a specialty of Engineering Express. Click here to be apply for access to our system & request a quote for site-specific services.
Product Documents
Sample Documents
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
Product Documents
Sample Documents
Related Plans
-

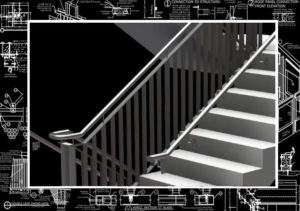

Welded Aluminum Stair Rail – Railing with Grabrail Option (MPS 20-35442)
