Weight | 0.32 lbs |
---|---|
Dimensions | 0.0100 × 17.0000 × 11.0000 in |
Brand | Rheem |
Plan Type | Clip / Tie-Down, Master Plan Sheet – MPS, Manufacturer Plans |
Storefront | rheem, Engineering Express |
Plan Format | Digitally Sealed File, Sealed Hardcopy |
Wind Load Certification of Mech Unit Cabinetry and Steel/Alum Tie-Down Clips – Roof Mounted
Store Home
Read MoreRead Less
Read Disclaimer & Important Information for Use
Wind Load Certification of Mech Unit Cabinetry and Steel/Alum Tie-Down Clips – Roof Mounted
$60.00 – $80.00 or ( 6 Tokens - 8 Tokens )

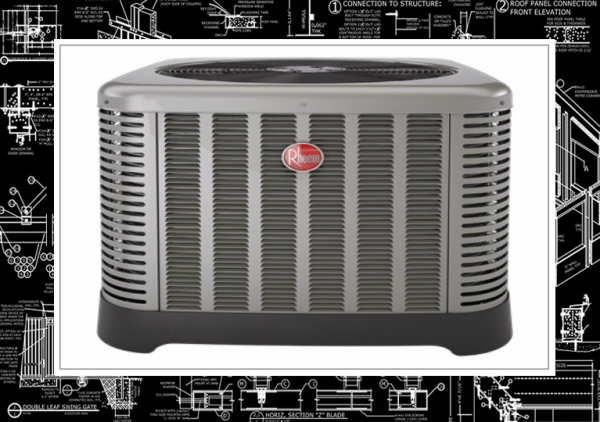

This certification applies to the Rheem Roof Mounted residential air handler unit types and is available as a sealed drawing. The certification is sold as an engineered sealed document and meets the requirements of the selected building code above using ASCE 7 for the approval of unit housing and tiedown clip capacities, and upon ordering, will be signed and sealed by a Professional Engineer of the firm. Use it with your other approved documents to obtain a building permit.
This product can be used with the following:
- Roof Mounted
- 31-inch – All Rheem models (M & M1 cabinet) that fit within the specified cabinetry dimensions and unit construction.
- 35-inch – All Rheem models (M & M1 cabinet) that fit within the specified cabinetry dimensions and unit construction.
- 51-inch – All Rheem models (M & M1 cabinet) that fit within the specified cabinetry dimensions and unit construction
Product Documents
Sample Documents
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
