Wood & Chain Link – Steel Framed Enclosure Gate (MPS 20-35475)
Wood & Chain Link – Steel Framed Enclosure Gate (MPS 20-35475)
$150.00 – $200.00 or ( 15 Tokens - 20 Tokens )

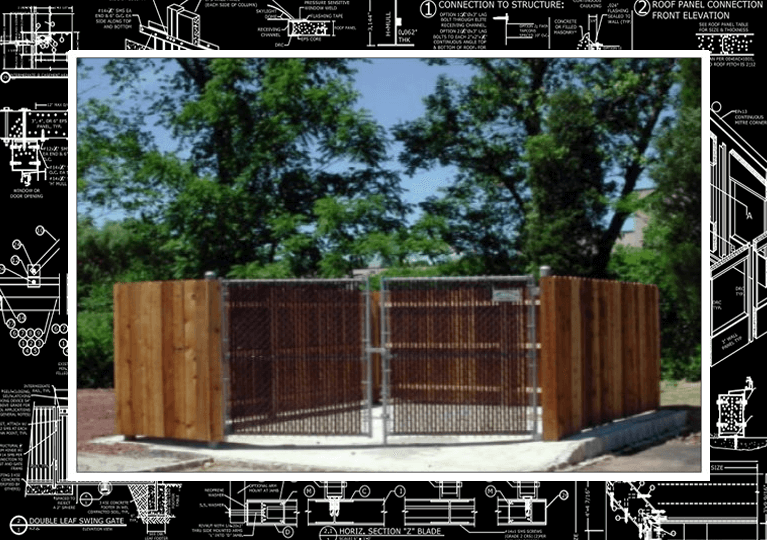

This gate master plan sheet certifies up to a 6′ high by 12′ wide double swing gate at grade for chain link or vertical wood picket configurations typically used for dumpster-type enclosures. Previous MPS #18-5793
This document has been designed to meet the requirements of the selected Building Code inside and outside the HVHZ1 and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it along with your other project documents to obtain a building permit. It is generic and installations beyond the scope and limitations of this document shall require site-specific engineering.
For site-specific projects, click here to request a quote.
1 High-Velocity Hurricane Zone (Dade and Broward Counties, Florida)
Product Documents
Sample Documents
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
