Digitally Sealed E-Permit File, Raised Sealed Hardcopy
Master Plan Sheet – MPS, Manufacturer Plans

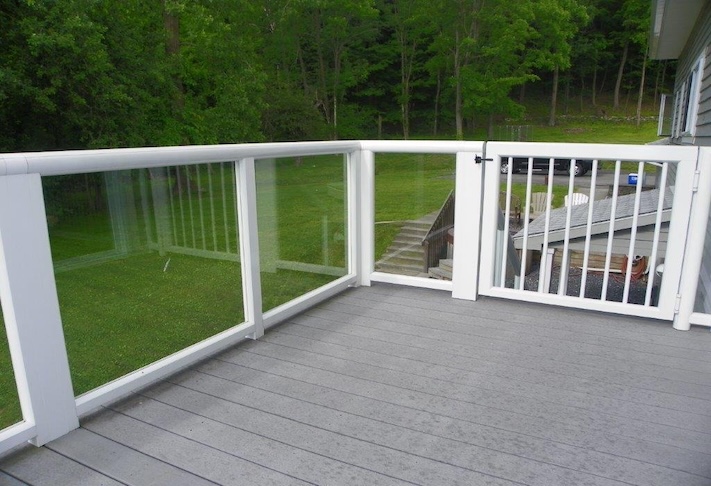

Elite 2000 Handrail Glass And Picket Performance Evaluation
$225.00 – $300.00 or ( 22.5 Tokens - 30 Tokens )
This certification applies to the Elite 2000 Handrail Glass And Picket Performance Evaluation Report. It includes numerous dimensions, wind speed/pressures, and component options for many common Elite Aluminum applications. It is sold as an engineered sealed document and meets the requirements of the applicable building code using ASCE 7-16 & ASCE 7-22 for the approval of structural adequacy only. Use it in conjunction with your other approved documents to obtain a building permit. (Previous # 20-30292)
This certification is sold as an engineered sealed document and meets the requirements of the current Building Codes in the state selected. It is generic, and installations beyond the scope and limitations of this document shall require site-specific engineering.
HOW THIS PLAN IS USED:
- Purchase and receive a signed and sealed copy of this plan to be used for permit.
- As this is NOT site-specific, a design professional (such as the architect or engineer of record) must approve the applicability of this product to a site specific address. This document alone is NOT to be used to obtain a permit without approval for use as a site-specific application.
- Obtain your permit and install the product. The installation will be field reviewed for compliance with the architectural and master plans. Any discrepancies shall require a full site-specific evaluation by this firm or a determination by others that modifications are acceptable/how to repair. Any modifications to our plans become the responsibility of others.
It is recommended that site-specific plans be generated for this type of work. This is a specialty of Engineering Express. Click here to be apply for access to our system & request a quote for site-specific services.
For states not listed here, please contact us.
