ALLIED AIR: ARMSTRONG SPLIT SYSTEM UNITS

ALLIED AIR: ARMSTRONG SPLIT SYSTEM UNITS

$70.00 – $90.00 or ( 7 Tokens - 9 Tokens )

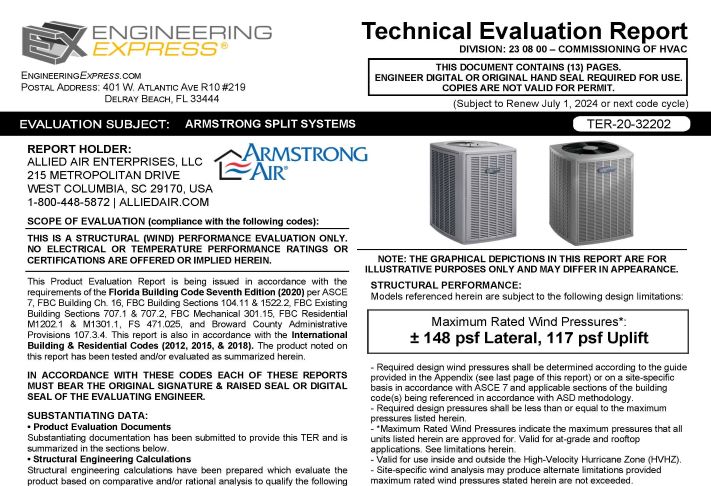

This certification is applicable to the Allied Air Armstrong Split System Units. The certification is sold as an engineered sealed Evaluation Report and meets the requirements of the structural wind integrity per the selected building code above using ASCE 7-10 & ASCE 7-16 for the approval of unit housing and tie-down clip capacities, and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it in conjunction with your other approved documents to obtain a building permit.

Models included in this TER:

Model Number Unit Dimensions (in.)
Width Depth Height
4SCU14LB118P 26.75 24.75 29.75
4SCU14LB124P 31.25 29.38 29.75
4SCU14LB130P 31.25 29.38 37.75
4SCU14LB136P 31.25 29.38 29.75
4SCU14LB142P 31.25 29.38 37.75
4SCU14LB148P 31.25 29.38 37.75
4SCU14LB160P 37.75 35.75 43.75
4SCU16LE118P 26.75 24.75 29.75
4SCU16LE124P 31.25 29.38 29.75
4SCU16LE130P 31.25 29.38 37.75
4SCU16LE136P 31.25 29.38 29.75
4SCU16LE141P 31.25 29.38 37.75
4SCU16LE142P 31.25 29.38 37.75
4SCU16LE147P 37.75 35.75 33.75
4SCU16LE148P 31.25 29.38 37.75
4SCU16LE159P 37.75 35.75 43.75
4SCU16LE160P 37.75 35.75 43.75
4SCU16LS124P 31.25 29.38 43.75
4SCU16LS136P 31.25 29.38 29.75
4SCU16LS148P 31.25 29.38 37.75
4SCU16LS160P 37.75 35.75 43.75
4SCU17LE118 31.25 29.38 29.75
4SCU17LE124 31.25 29.38 37.75
4SCU17LE130 31.25 29.38 29.75
4SCU17LE136 31.25 29.38 37.75
4SCU17LE141 37.75 35.75 33.75
4SCU17LE142 37.75 35.75 33.75
4SCU17LE147 37.75 35.75 33.75
4SCU17LE148 31.25 29.38 43.75
4SCU17LE159 37.75 35.75 43.75
4SCU17LE160 37.75 35.75 43.75
4SCU20LX124P 37.75 35.75 37.75
4SCU20LX136P 37.75 35.75 37.75
4SCU20LX148P 37.75 35.75 43.75
4SCU20LX160P 37.75 35.75 43.75
4SCU23LX124 37.75 35.75 37.75
4SCU23LX136 37.75 35.75 37.75
4SCU23LX148 37.75 35.75 43.75
4SCU23LX160 37.75 35.75 43.75
4SHP14LB118P 31.25 29.38 43.75
4SHP14LB124P 31.25 29.38 43.75
4SHP14LB130P 31.25 29.38 43.75
4SHP14LB136P 31.25 29.38 37.75
4SHP14LB142P 37.75 35.75 37.75
4SHP14LB148P 37.75 35.75 37.75
4SHP14LB160P 37.75 35.75 43.75
4SHP15LE118P 31.25 29.38 43.75
4SHP15LE124P 31.25 29.38 43.75
4SHP15LE130P 31.25 29.38 43.75
4SHP15LE136P 31.25 29.38 37.75
4SHP15LE142P 37.75 35.75 37.75
4SHP15LE148P 37.75 35.75 37.75
4SHP15LE160P 37.75 35.75 43.75
4SHP16LE118P 31.25 29.38 43.75
4SHP16LE124P 31.25 29.38 33.75
4SHP16LE130P 31.25 29.38 33.75
4SHP16LE136P 37.75 35.75 33.75
4SHP16LE142P 37.75 35.75 43.75
4SHP16LE148P 37.75 35.75 43.75
4SHP16LE160P 37.75 35.75 43.75
4SHP16LS124P 26.75 24.75 33.75
4SHP16LS136P 31.25 29.38 37.75
4SHP16LS148P 37.75 35.75 37.75
4SHP16LS160P 37.75 35.75 43.75
4SHP17LE118P 31.25 29.38 43.75
4SHP17LE124P 31.25 29.38 43.75
4SHP17LE130P 31.25 29.38 33.75
4SHP17LE136P 37.75 35.75 33.75
4SHP17LE142P 37.75 35.75 37.75
4SHP17LE148P 37.75 35.75 37.75
4SHP17LE160P 37.75 35.75 43.75
4SHP18LX136P 31.25 29.38 33.75
4SHP18LX160P 31.25 29.38 43.75
4SHP20LX124P 37.75 35.75 37.75
4SHP20LX136P 37.75 35.75 37.75
4SHP20LX148P 37.75 35.75 43.75
4SHP20LX160P 37.75 35.75 43.75
4SHP22LX124P 37.75 35.75 37.75
4SHP22LX136P 37.75 35.75 37.75
4SHP22LX148P 37.75 35.75 43.75
4SHP22LX160P 37.75 35.75 43.75

What is a TER and how is it used for permitting?

What’s the difference between a TER and a Miami Dade NOA or FL Product Approval?

What do I do if a TER isn’t enough for a permit?

What Doesn’t a TER Do?

For variations of this plan, click here – select ‘Revision To One Of Our Projects’ when asked, & reference the MPS SKU number listed herein.

Read More & See Applicable Model Numbers
