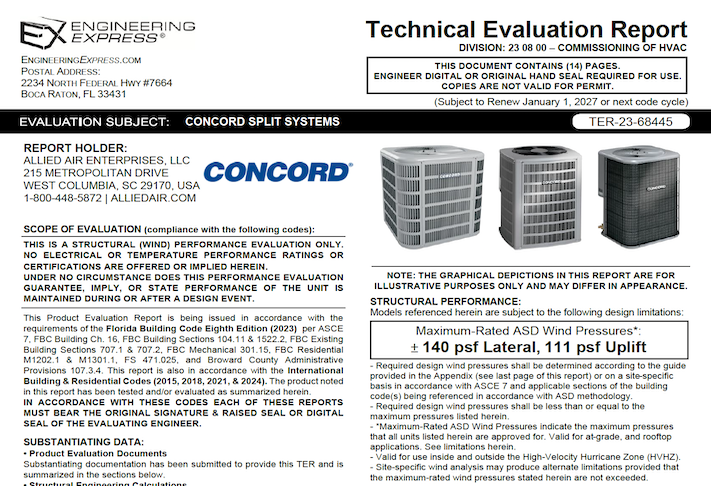

This certification is applicable to the Allied Air Concord Split System Units. The certification is sold as an engineered sealed Evaluation Report and meets the requirements of the structural wind integrity per the selected building code above using ASCE 7-10 & ASCE 7-16 for the approval of unit housing and tie-down clip capacities, and upon ordering, will be signed and sealed by a Professional Engineer of the firm. Use it alongside your other approved documents to obtain a building permit.

Digitally certified documents are licensed to the provided contractor and zip code within the time frame listed. For extensions beyond that date, use the Online Chat to request an extension.

This report applies to the following model numbers:

Model Number Unit Dimensions (in) Model Number Unit Dimensions (in)
Width  Depth Height  Width  Depth Height
4AC16LT24* 26.75 24.75 29.75 4HP15L48P* 32.25 32.25 37.25
4HP16LT24* 26.75 24.75 33.75 4HP15L60P* 32.25 32.25 43.25
4AC16LT36* 31.25 29.38 29.75 4HP16L18P* 28.25 28.25 43.25
4HP16LT36* 31.25 29.38 37.75 4HP16L24P* 28.25 28.25 33.25
4AC16LT48* 31.25 29.38 37.75 4HP16L30P* 28.25 28.25 33.25
4AC16LT60* 31.25 29.38 43.75 4HP16L36P* 32.25 32.25 33.25
4HP16LT48* 37.75 35.75 37.75 4HP16L42P* 32.25 32.25 43.25
4HP16LT60* 37.75 35.75 43.75 4HP16L48P* 32.25 32.25 43.25
4HP18V36* 31.25 29.38 33.75 4HP16L60P* 32.25 32.25 43.25
4HP18V60* 31.25 29.38 43.75 4HP17L18P* 28.25 28.25 43.25
7HP19V36* 29.38 31.25 33.75 4HP17L24P* 28.25 28.25 43.25
7HP19V60* 29.38 31.25 43.75 4HP17L30P* 28.25 28.25 33.25
4AC14B18P* 24.25 24.25 29.25 4HP17L36P* 32.25 32.25 33.25
4AC14B24P* 28.25 28.25 29.25 4HP17L42P* 32.25 32.25 37.25
4AC14B30P* 28.25 28.25 37.25 4HP17L48P* 32.25 32.25 37.25
4AC14B36P* 28.25 28.25 29.25 4HP17L60P* 32.25 32.25 43.25
4AC14B42P* 28.25 28.25 37.25 7AC14F18* 28.25 28.25 29.25
4AC14B48P* 28.25 28.25 37.25 7AC14F24* 28.25 28.25 37.25
4AC14B60P* 32.25 32.25 43.25 7AC14F30* 28.25 28.25 29.25
4AC16L18P* 24.25 24.25 29.25 7AC14F36* 28.25 28.25 37.25
4AC16L24P* 28.25 28.25 29.25 7AC14F41* 32.25 32.25 33.25
4AC16L30P* 28.25 28.25 37.25 7AC14F42* 32.25 32.25 33.25
4AC16L36P* 28.25 28.25 29.25 7AC14F47* 32.25 32.25 33.25
4AC16L41P* 28.25 28.25 37.25 7AC14F48* 28.25 28.25 43.25
4AC16L42P* 28.25 28.25 37.25 7AC14F59* 32.25 32.25 43.25
4AC16L47P* 32.25 32.25 33.25 7AC14F60* 32.25 32.25 43.25
4AC16L48P* 28.25 28.25 37.25 7AC17T24* 28.25 28.25 29.25
4AC16L59P* 32.25 32.25 43.25 7AC17T36* 28.25 28.25 29.25
4AC16L60P* 32.25 32.25 43.25 7AC17T48* 28.25 28.25 29.25
4AC17L18* 28.25 28.25 29.25 7AC17T60* 32.25 32.25 43.25
4AC17L24* 28.25 28.25 37.25 7HP14F18* 28.25 28.25 43.25
4AC17L30* 28.25 28.25 29.25 7HP14F24* 28.25 28.25 43.25
4AC17L36* 28.25 28.25 37.25 7HP14F30* 28.25 28.25 33.25
4AC17L41* 32.25 32.25 33.25 7HP14F36* 32.25 32.25 33.25
4AC17L42* 32.25 32.25 33.25 7HP14F42* 32.25 32.25 37.25
4AC17L47* 32.25 32.25 33.25 7HP14F48* 32.25 32.25 37.25
4AC17L48* 28.25 28.25 43.25 7HP14F60* 32.25 32.25 43.25
4AC17L59* 32.25 32.25 43.25 BAB714S18* 28.25 28.25 29.25
4AC17L60* 32.25 32.25 43.25 BAB714S24* 28.25 28.25 37.25
4HP14B18P* 28.25 28.25 43.25 BAB714S30* 28.25 28.25 29.25
4HP14B24P* 28.25 28.25 43.25 BAB714S36* 28.25 28.25 37.25
4HP14B30P* 28.25 28.25 43.25 BAB714S42* 32.25 32.25 33.25
4HP14B36P* 28.25 28.25 37.25 BAB714S48* 28.25 28.25 43.25
4HP14B42P* 32.25 32.25 37.25 BAB714S60* 32.25 32.25 43.25
4HP14B48P* 32.25 32.25 37.25 BHB714S18* 28.25 28.25 43.25
4HP14B60P* 32.25 32.25 43.25 BHB714S24* 28.25 28.25 43.25
4HP15L18P* 28.25 28.25 43.25 BHB714S30* 28.25 28.25 33.25
4HP15L24P* 28.25 28.25 43.25 BHB714S36* 32.25 32.25 33.25
4HP15L30P* 28.25 28.25 43.25 BHB714S42* 32.25 32.25 37.25
4HP15L36P* 28.25 28.25 37.25 BHB714S48* 32.25 32.25 37.25
4HP15L42P* 32.25 32.25 37.25 BHB714S60* 32.25 32.25 43.25

What is a TER and how is it used for permitting?

What’s the difference between a TER and a Miami Dade NOA or FL Product Approval?

What do I do if a TER isn’t enough for a permit?

What Doesn’t a TER Do?

Read More & See Applicable Model Numbers
Please select the state you would like the document certified in
Please choose whether this is for a multi-story building or not
This field can't be Empty
This field can't be Empty
Please choose the permitting party
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

As of November 1, 2024, All building departments in Broward county require files submitted to their online permitting portal to be formatted differently. Delray Beach requires the same type of formatting for our TERs instead of selecting individually seal each page.

Need the drawing earlier than 48 business hours? We now have the option to expedite it for a fee! Please note expedited orders only applies to digitally signed and sealed documents during our business hours. Any orders placed over the weekend and or after business hours with the expedition fee will be applied to the next business day.

View Sample

Weight 1.0 lbs
Dimensions 11 × 8.5 × 0.25 in
Plan Format

Digitally Sealed Online-Only File, Raised Sealed Embossed Physical Copy
Brand

Allied, Armstrong
Plan Type

Technical Evaluation Report-TER
Storefront

Allied, Engineering Express
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
