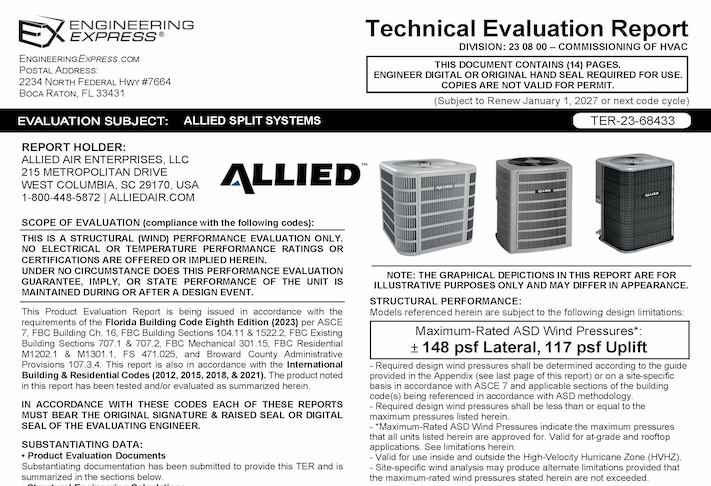

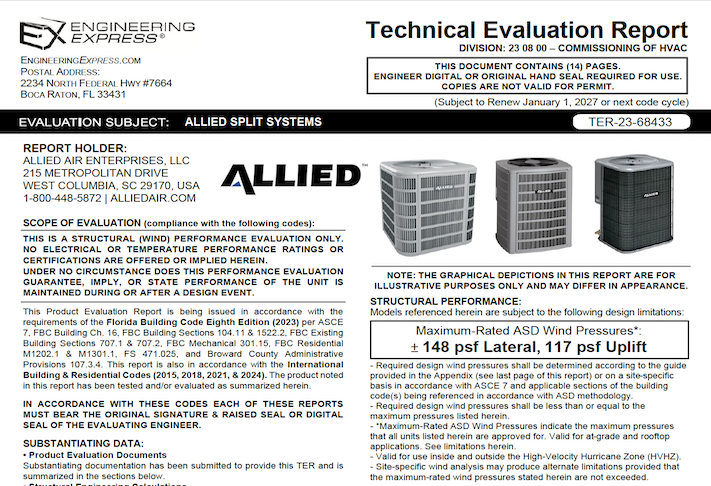

Allier Air: Allied Split System Technical Evaluation Report 2023 Update
Allier Air: Allied Split System Technical Evaluation Report 2023 Update

Allier Air: Split System Technical Evaluation

$60.00 – $80.00 or ( 6 Tokens - 8 Tokens )

This document is sold as an engineer-certified report for permitting Allier Air: Split System meeting model numbers listed below. The document meets the requirements of the structural wind integrity per the selected building code above using ASCE 7 for the structural approval of unit housing and tie-down clip capacities. This report will be signed and sealed by a Professional Engineer of the firm when purchased and delivered to you via email (using the digital seal method, within 24 hours) or mail (UPS Ground for printed and signed hardcopies, next day in South Florida). Use it with your site-specific documents to obtain a building permit. (Former TER #20-32196)

Digitally certified documents are licensed to the provided contractor and zip code up to the time frame listed. For extensions beyond that date, use the Online Chat to request an extension.

This report applies to the following model numbers:

Model Number Unit Dimensions (in.) Model Number Unit Dimensions (in.)
Width Depth Height Width Depth Height
4AC16LT24P 26.75 24.75 29.75 4AC17L47 32.25 32.25 33.25
4HP16LT24P 26.75 24.75 33.75 4AC17L48 28.25 28.25 43.25
4AC16LT36P 31.25 29.38 29.75 4AC17L59 32.25 32.25 43.25
4HP16LT36P 31.25 29.38 37.75 4AC17L60 32.25 32.25 43.25
4AC16LT48P 31.25 29.38 37.75 4HP14B18P 28.25 28.25 43.25
4AC16LT60P 31.25 29.38 43.75 4HP14B24P 28.25 28.25 43.25
4HP16LT48P 37.75 35.75 37.75 4HP14B30P 28.25 28.25 43.25
4HP16LT60P 37.75 35.75 43.75 4HP14B36P 28.25 28.25 37.25
4HP18V36P 31.25 29.38 33.75 4HP14B42P 32.25 32.25 37.25
4HP18V60P 31.25 29.38 43.75 4HP14B48P 32.25 32.25 37.25
4AC14B18P 24.25 24.25 29.25 4HP14B60P 32.25 32.25 43.25
4AC14B24P 28.25 28.25 29.25 4HP15L18P 28.25 28.25 43.25
4AC14B30P 28.25 28.25 37.25 4HP15L24P 28.25 28.25 43.25
4AC14B36P 28.25 28.25 29.25 4HP15L30P 28.25 28.25 43.25
4AC14B42P 28.25 28.25 37.25 4HP15L36P 28.25 28.25 37.25
4AC14B48P 28.25 28.25 37.25 4HP15L42P 32.25 32.25 37.25
4AC14B60P 32.25 32.25 43.25 4HP15L48P 32.25 32.25 37.25
4AC16L18P 24.25 24.25 29.25 4HP15L60P 32.25 32.25 43.25
4AC16L24P 28.25 28.25 29.25 4HP16L18P 28.25 28.25 43.25
4AC16L30P 28.25 28.25 37.25 4HP16L24P 28.25 28.25 33.25
4AC16L36P 28.25 28.25 29.25 4HP16L30P 28.25 28.25 33.25
4AC16L41P 28.25 28.25 37.25 4HP16L36P 32.25 32.25 33.25
4AC16L42P 28.25 28.25 37.25 4HP16L42P 32.25 32.25 43.25
4AC16L47P 32.25 32.25 33.25 4HP16L48P 32.25 32.25 43.25
4AC16L48P 28.25 28.25 37.25 4HP16L60P 32.25 32.25 43.25
4AC16L59P 32.25 32.25 43.25 4HP17L18P 28.25 28.25 43.25
4AC16L60P 32.25 32.25 43.25 4HP17L24P 28.25 28.25 43.25
4AC17L18 28.25 28.25 29.25 4HP17L30P 28.25 28.25 33.25
4AC17L24 28.25 28.25 37.25 4HP17L36P 32.25 32.25 33.25
4AC17L30 28.25 28.25 29.25 4HP17L42P 32.25 32.25 37.25
4AC17L36 28.25 28.25 37.25 4HP17L48P 32.25 32.25 37.25
4AC17L41 32.25 32.25 33.25 4HP17L60P 32.25 32.25 43.25
4AC17L42 32.25 32.25 33.25

What’s the difference between a TER and a Miami Dade NOA or FL Product Approval?

What is a TER and how is it used for permitting?

What do I do if a TER isn’t enough for a permit?

What Doesn’t a TER Do?

Read More
Please select the state you would like the document certified in
This field can't be Empty
This field can't be Empty
This field can't be Empty
Save up to an additional 33% by using tokens Learn more
View Sample

Read Disclaimer & Important Information for Use
Weight 1.0 lbs
Dimensions 11 × 8.5 × 0.25 in
Plan Format

Digitally Sealed E-Permit File, Raised Sealed Hardcopy
Brand

Allied
Plan Type

Technical Evaluation Report-TER
