|Dimensions||0.0100 × 17.0000 × 11.0000 in|
Digitally Sealed File, Sealed Hardcopy
FBC 7th Ed. (2020) (ASCE 7-16)
Master Plan Sheet – MPS
Andes Fence: Welded Aluminum Stair Rail – Railing with Grabrail Option
$225.00 – $300.00 or ( 22.5 Tokens - 30 Tokens )

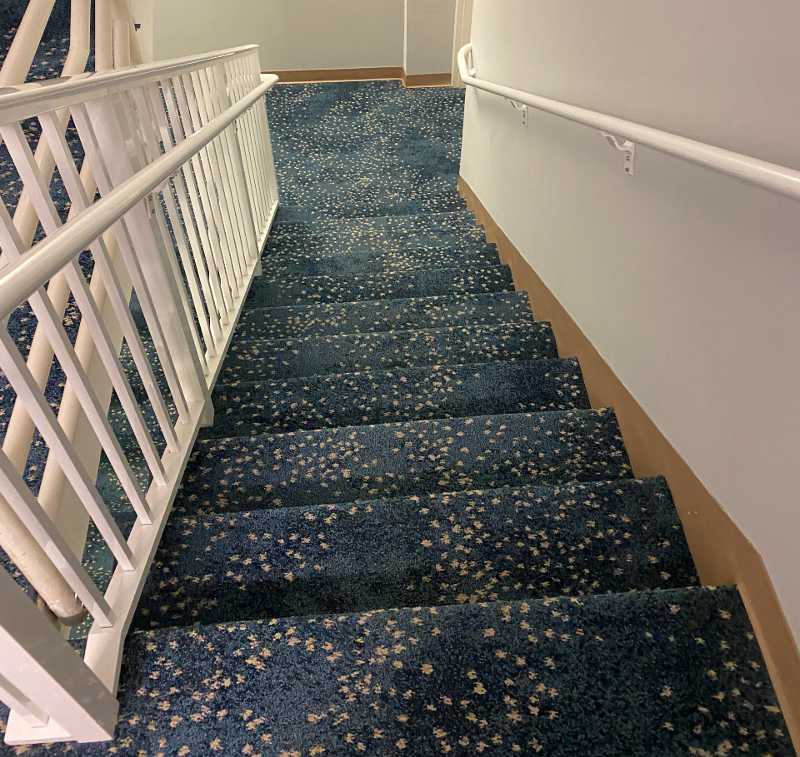

This railing master plan certifies Andes Fence: Welded Aluminum Stair Rail – Railing with Grabrail Option. Many variations of this plan can be created for you through a site-specific quote. It is intended to be used as a baseline for design since applications frequently deviate from this plan. If your condition matches, follow the instructions below on how to apply it to your site-specific application.
The previous code plan # is 19-8301.
This document has been designed to meet the requirements of the selected Building Code inside and outside the HVHZ1 and, upon ordering, will be signed and sealed by a Professional Engineer of the firm. Use it along with your other project documents to obtain a building permit. It is generic, and installations using this document shall require site-specific engineering.
HOW THIS PLAN IS USED:
- Purchase and receive a signed and sealed copy of this plan to be used for a permit.
- As this is NOT site-specific, a design professional (such as the architect or engineer of record) must approve the applicability of this product to a site-specific address. This document alone cannot be used to obtain a permit without approval for use as a site-specific application.
- Obtain your permit and install the product. The installation will be field reviewed for compliance with the architectural and master plans. Any discrepancies shall require a full site-specific evaluation by this firm or a determination by others that modifications are acceptable/how to repair. Any modifications to our plans become the responsibility of others.
It is recommended that site-specific plans be generated for this type of work. This is a specialty of Engineering Express. Click here to apply for access to our system & request a quote for site-specific services.
1 High-Velocity Hurricane Zone (Dade and Broward Counties, Florida)
Read Disclaimer & Important Information for Use
