Bryant: Split Units Evaluation
Bryant: Split Units Evaluation

Bryant: Split Units Evaluation

$40.00 – $80.00 or ( 6 Tokens - 8 Tokens )

This document is sold as an engineer-certified report for permitting Bryant: Split Units Evaluation meeting model numbers listed below. The document meets the requirements of the structural wind integrity per the selected building code above using ASCE 7 for the structural approval of unit housing and tie-down clip capacities. This report will be signed and sealed by a Professional Engineer of the firm when purchased and delivered to you via email (using the digital seal method, within 24 hours) or mail (UPS Ground for printed and signed hardcopies, next day in South Florida). Use it with your site-specific documents to obtain a building permit.

Digitally certified documents are licensed to the provided contractor and zip code up to the time frame listed. For extensions beyond that date, use the Online Chat to request an extension.

This report applies to the following model numbers:

Unit Model Unit Dimensions (in)
Width Depth Height
126B**018 25.75 26.75 28.69
126B**024 31 16 32 16 28.31
126B**030 31.19 31.19 32.31
126B**036 35.00 35.00 28.31
126B**042 35.00 35.00 39.13
126B**048 35.00 35.00 32.31
126B**060 35.00 35.00 45.94
127A**024 31.19 31.19 35.75
127A**036 31.19 31.19 35.75
127A**048 35.00 35.00 39.13
127A**060 35.00 35.00 45.88
127T*N024*** 31.20 31.20 35.50
127T*N036*** 35.00 35.00 32.06
127T*N048*** 35.00 35.00 38.90
127T*N060*** 35.00 35.00 38.90
180C**024 35.00 35.00 40.63
180C**036 35.00 35.00 47.44
180C**048 35.00 35.00 47.44
180C**060 35.00 35.00 47.44
186B**018 31.19 31.19 29.56
186B**024 31.19 31.19 29.05
186B**030 31.19 31.19 32.94
186B**036 35.00 35.00 30.44
186B**042 35.00 35.00 40.63
186B**048 35.00 35.00 40.63
186B**060 35.00 35.00 47.44
186C**024 35.00 35.00 43.81
186C**036 35.00 35.00 47.19
186C**048 35.00 35.00 47.19
186C**060 35.00 35.00 47.19
187B**024 31.19 31.19 36.38
187B**036 31.19 31.19 36.38
187B**048 35.00 35.00 40.63
187B**060 35.00 35.00 40.63
189B**013 23.13 23.13 31.63
189B**024 23.13 23.13 31.63
189B**025 23.13 23.13 38.44
189B**036 23.13 23.13 38.44
189B**037 31.19 31.19 39.75
189B**048 31.19 31.19 39.75
189B**049 35.00 35.00 44.00
189B**060 31.19 31.19 43.19
225B**018 31.19 31.19 28.94
225B**024 35.00 35.00 32.31
225B**030 35.00 35.00 32.31
225B**036 35.00 35.00 35.75
225B**042 35.00 35.00 28.94
225B**048 35.00 35.00 28.94
225B**060 35.00 35.00 39.13
226A**024 35.00 35.00 39.13
226A**036 35.00 35.00 39.13
226A**048 35.00 35.00 39.13
226A**060 35.00 35.00 45.94
227T*N024*** 35.00 35.00 35.50
227T*N036*** 35.00 35.00 38.88
227T*N048*** 35.00 35.00 45.69
227T*N060*** 35.00 35.00 45.69
280A**024 35.00 35.00 44.00
280A**036 35.00 35.00 44.00
280A**048 35.00 35.00 44.00
280A**060 35.00 35.00 44.00
284A**024 35.00 35.00 43.81
284A**036 35.00 35.00 47.19
284A**048 35.00 35.00 47.19
284A**060 35.00 35.00 47.19
285B**018 31.19 31.19 29.56
285B**024 35.00 35.00 33.88
285B**030 35.00 35.00 37.25
285B**036 35.00 35.00 37.25
285B**042 35.00 35.00 30.44
285B**048 35.00 35.00 33.88
285B**060 35.00 35.00 40.63
286B**024 35.00 35.00 40.63
286B**036 35.00 35.00 40.63
286B**048 35.00 35.00 40.63
286B**060 35.00 35.00 47.44
288B**013 23.13 23.13 31.63
288B**024 23.13 23.13 31.63
288B**025 23.13 23.13 38.44
288B**036 23.13 23.13 31.63
288B**037 31.19 31.19 39.75
288B**048 31.19 31.19 38.44
288B**060 31.19 31.19 43.19
289B**024 35.00 35.00 40.63
289B**036 35.00 35.00 44.06
289B**048 35.00 35.00 47.44
289B**060 35.00 35.00 47.44
Read More
Please select the state you would like the document certified in
This field can't be Empty
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

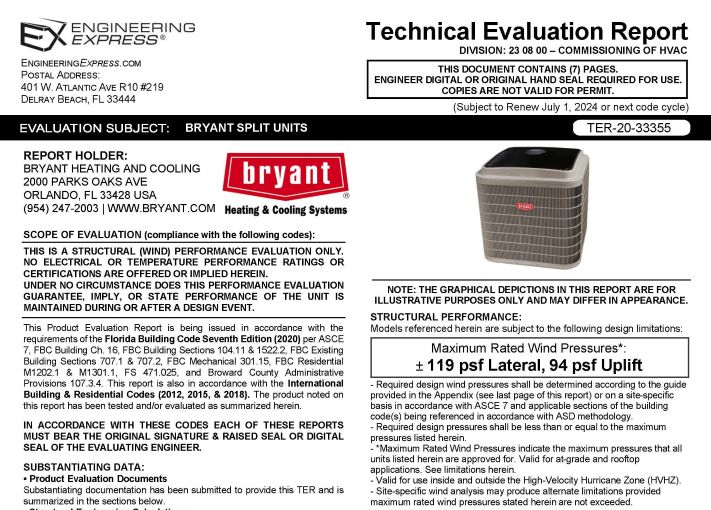

View Sample

Read Disclaimer & Important Information for Use
Weight 0.05 lbs
Dimensions 0.0100 × 8.5000 × 11.0000 in
Plan Format

Digitally Sealed File, Sealed Hardcopy
Brand

Bryant
Plan Type

Technical Evaluation Report-TER, Manufacturer Plans
Storefront

Carrier, Engineering Express
Building Code

2017 Florida Building Code (6th Edition), 2020 Florida Building Code (7th Edition)
