Open-Walled Canopy & Pergola Design Loading Calculator

Important Message from Engineering Express

By clicking below, you agree that the use of this design aid is for estimating purposes only. Results are not valid for use & no construction or design shall be performed without the review and certification by a registered professional engineer.

No warranty or guarantee whatsoever is offered with any results obtained herein.


AGREE & CONTINUE

ASD DESIGN LOAD COMBINATION CALCULATOR FOR OPEN-WALLED CANOPY & PERGOLA DESIGNS

For At-Grade Freestanding or Host Attached Canopies & Pergolas Using ASCE 7-22 / IBC 2021 / FBC 2023
host attached pergola
For Help, Hover Labels, See Images Below, Or Visit The Glossary
HELP - GLOSSARY
Canopy Load Calculator - V4 2 24 2024 - ASCE 7-22
INPUTS
  Site Conditions
  UNITS
  Wind Conditions
Input Ultimate Wind Speed, Vult, Based on Location
This can be found at https://ascehazardtool.org/ and is subject to your local building department
MPH
Determine your site exposure category. Help can be found at ecalc.io/Exposure
Is your structure being installed in Florida's High Velocity Hurricane Zone? HVHZ Zone?
  Snow & Ice Conditions
Ground Snow Load can be found at https://ascehazardtool.org/ or via your local building department's design standards.
PSF
The ASCE 7-22 Chapter 10 Details a required ice loading calculation for "icing-sensitive" structures. This is required for pergolas with mechanically opening louvers and trellised roofs. Use the map at the link below to find your local icing thickness (between 0" and 2")
IN
  Seismic Conditions
Due to their smaller size and construction, ground mounted canopies and pergolas do not always require seismic design analysis. However, some high-seismic activity areas require these calculaitons. Refer your local building department or contact us if you have any questions. Consider Seismic?

Ss and S1 values can be found at https://ascehazardtool.org/ by searching your address, and selecting "seismic", Risk Category II, & Site Class D (Default)
Ss and S1 values can be found at https://ascehazardtool.org/ by searching your address, and selecting "seismic", Risk Category II, & Site Class D (Default) S1
SDC Classification can be found at https://ascehazardtool.org/ by searching your address, and selecting "seismic", Risk Category II, & Site Class D (Default). If not shown, refer your local building department designation. Calculations are not valid for SDC E and F SDC
Structure Design
Freestanding
or Host Attached?

Other roof styles such as flat pan roofs can be approximated with this tool, but will need additional certification from a structural engineer. Roof Type
For Roof Design, Wind is considered to flow through a porous system, such as louvers or trellis roof. For this, operable louvers are to be kepth in the open & locked position during a wind event with sustained winds of 45 mph or greater. Roof Wind Porosity

For porous roof systems, snow will partially build up in low-snow areas, and will fully bridge between roof elements in high-snow areas. Roof Snow Porosity

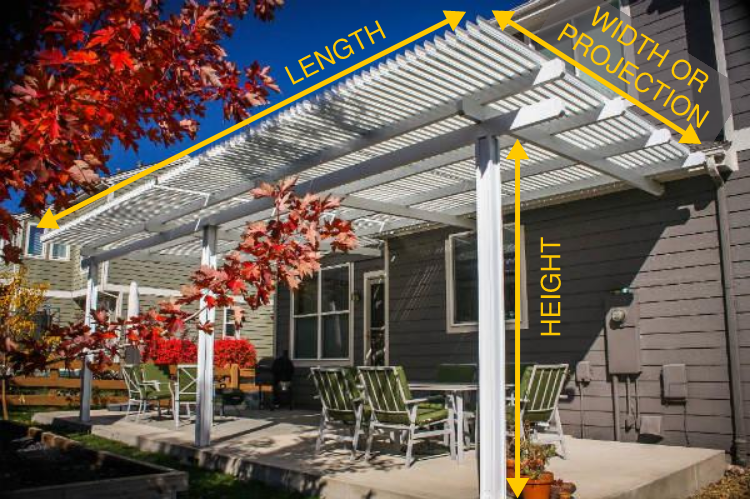

Total structure length, including any overhangs or extensions
FT
Total structure width, including any overhangs or extensions Structure Width
FT
Total structure height from ground to highest point Structure Height
FT
Roof Slope (Per 12")
Wind and snow drift calculations are affected by how tall an attached canopy is in relation to its host's eave height. Attachment Location
Select this option to show detailed results and a full loading breakdown. Certified report pages will always show full loading breakdowns, including relevant design coefficients and parameters used in calculations Show Detailed Results?

OUTPUTS
  Master Plan Design Aid:
Use these ASD Design Pressure values for elements which do not contribute to the structure's main structural system. This can include but is not limited to louver blades, rafters, windows, shutters, and non-structural attachments.
Note that these pressures do not apply for walled structures, as many wind calculations would be affected. Components &
Cladding (C&C)

Use these ASD Design Pressure values for design of the structure's main wind force resisting system. This may include but is not limited to structural roof panels, beams, mullions, posts, and other structural connections.
Note that these pressures do not apply for walled structures, as many wind calculations would be affected. Main Wind Force Resisting System (MWFRS)


The pressures listed below are unfactored, LRFD pressures. These values have been considered in calculation of the ASD design load combinations above as detailed in ASCE 7-22, ch 2.4 for the conditions considered & listed in the sealed report. Detailed Loading Breakdown

  Static Design Conditions
Dead Load PSF
Roof Live Load PSF
Reduced Roof Live Load PSF
  Wind Loads
C&C - Gravity (+) PSF
C&C - Uplift (-) PSF
C&C - Lateral PSF
Main Wind Force
Gravity (+) 		PSF
Main Wind Force
Uplift (-) 		PSF
Main Wind Force
Lateral 		PSF
  Snow Loads
Ground Snow Load PSF
Flat Roof Snow Load PSF
Distributed Surcharge Snow Load PSF
Rain-On-Snow Surcharge PSF
Design Snow Load PSF
  Icing Loads
Where icing loads are considered, reduced wind speeds and pressures have also been considered.
PLF
Where icing loads are considered, reduced wind speeds and pressures have also been considered. Icing Load On Beams
PLF
  Seismic Loads
LB
Effective Seismic Moment LB* FT
  Design Load Combinations
C&C - Gravity (+)
C&C - Uplift (-)
C&C - Lateral
Main Wind Force
Gravity (+)
Main Wind Force
Uplift (-)
Main Wind Force
Lateral

ORDER CERTIFIED RESULTS
Version 3.0
© Engineering Express Updated 2/25/2024
host attached pergola
host attached pergola

Open-Walled Canopy & Pergola Design Loading Calculator

$150.00 or ( 15 Tokens )

Find design pressures for your at-grade freestanding or host-attached canopy-pergola-trellis per ASCE 7 ASC load combinations ASCE 7-22 / IBC 2021 / FBC 2023

Read More
Please select the state you would like the document certified in
Please choose whether this is for a multi-story building or not
This field can't be Empty
This field can't be Empty
Please choose the permitting party
This field can't be Empty
When choosing Sealed Hardcopy, maximum quantity is 1.
3 copies are sent per order.
Save up to an additional 33% by using tokens Learn more

As of November 1, 2024, All building departments in Broward county require files submitted to their online permitting portal to be formatted differently. Delray Beach requires the same type of formatting for our TERs instead of selecting individually seal each page.

Need the drawing earlier than 24 hours? We now have the option to expedite it for a fee! Please note expedited orders only applies to digitally signed and sealed documents during our business hours. Any orders placed over the weekend and or after business hours with the expedition fee will be applied to the next business day.

View Sample

Weight N/A
Dimensions N/A
Plan Format

Digitally Sealed Online-Only File, Raised Sealed Embossed Physical Copy
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
