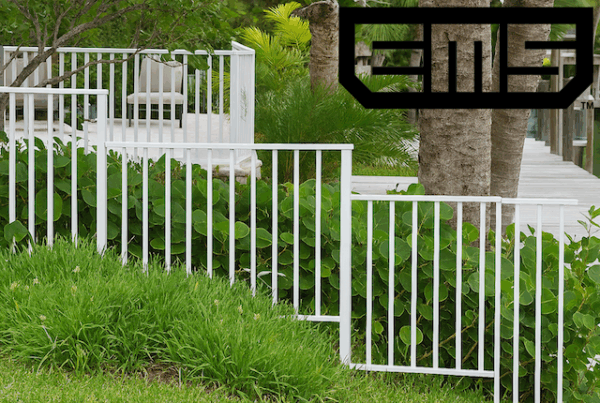

Eastern Metal Supply: Mechanical Aluminum Picket Railing Performance Evaluation

$220.00$300.00 or ( 22 Tokens - 30 Tokens )

This performance evaluation report certifies a variety of installation conditions for Eastern Metal Supply’s Mechanical Aluminum Picket Rail. It certifies an elevated railing installation for a variety of above-grade conditions. This document has been designed to meet the requirements of the selected Building Code and, upon ordering, will be signed and sealed by a Professional Engineer of the firm. Use it along with your other project documents to obtain a building permit. It is generic, and installations beyond the scope and limitations of this document shall require site-specific engineering (Former Plan #21-37381)

This engineer-sealed plan has been designed to meet the requirements of the selected  Building Code across the US and inside and outside the HVHZ in Florida (All of Florida, including Dade & Broward Counties). Use it along with your other project documents to obtain a building permit.

HOW THIS PLAN IS USED:

  1. Purchase and receive a signed and sealed copy of this plan to be used for a permit.
  2. As this is NOT site-specific, a design professional (such as the architect or engineer of record) must approve the applicability of this product to a site-specific address.  This document alone is NOT to be used to obtain a permit without approval for use as a site-specific application.
  3. Obtain your permit and install the product.  The installation will be field reviewed for compliance with the architectural and the performance evaluation report. Any discrepancies shall require a complete site-specific evaluation by this firm or a determination by others that modifications are acceptable/how to repair.  Any changes to our plans become the responsibility of others.

For site-specific projects, click here to request a quote.



Read More
Please select the state you would like the document certified in
This field can't be Empty
This field can't be Empty
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

Product Documents

Product Documents

Weight .96 lbs
Dimensions .01 × 11 × 17 in
Plan Format

Digitally Sealed E-Permit File, Raised Sealed Hardcopy

Plan Type

Manufacturer Plans, Performance Evaluation Report

Plan Designer

Engineering Express

Storefront

Eastern Metal Supply, Engineering Express

Brand

Eastern Metal Supply

Material

Aluminum

The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
