Hillman Group: Rafter Seam (Item No. 51793 And 56693)
$60.00 – $80.00 or ( 6 Tokens - 8 Tokens )

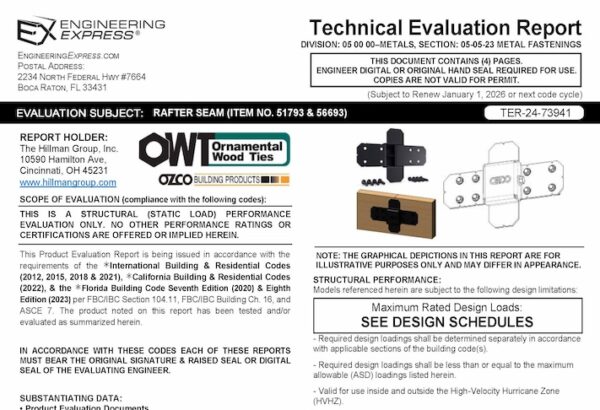

This technical evaluation report applies to the Hillman Group: Rafter Seam (Item No. 51793 And 56693). It is sold as an engineered sealed document and meets the requirements of the applicable building code using ASCE 7 to approve structural adequacy only. Use it with your other approved documents to obtain a building permit. (Former Plan # 22-50091)
This certification is sold as an engineered sealed document and meets the requirements of the current Building Codes. Use it with your other approved documents to obtain a building permit. It is generic, and installations beyond the scope and limitations of this document shall require site-specific engineering.
For site-specific projects, click here to request a quote.
| Weight | 1.0 lbs |
|---|---|
| Dimensions | 8.5 × 11.5 × 0.25 in |
| Plan Format | Digitally Sealed E-Permit File, Raised Sealed Hardcopy |
| Plan Type | Technical Evaluation Report-TER |
| Storefront | Engineering Express |
| Brand | Hillman Group |
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
