LG: Air Source Heat Pump Units Technical Evaluation Report
LG: Air Source Heat Pump Units Technical Evaluation Report

LG: Air Source Heat Pump Units Technical Evaluation

$70.00 – $90.00 or ( 7 Tokens - 9 Tokens )

This document is sold as an engineer-certified report for permitting LG: Air Source Heat Pump Units to meet the model numbers listed below. The document meets the requirements of the structural wind integrity per the selected building code above using ASCE 7 for the structural approval of unit housing and tie-down clip capacities. This report will be signed and sealed by a Professional Engineer of the firm when purchased and delivered to you via email (using the digital seal method, within 24 hours) or mail (UPS Ground for printed and signed hardcopies, next day in South Florida). Use it with your site-specific documents to obtain a building permit.

Digitally certified documents are licensed to the provided contractor and zip code up to the time frame listed. For extensions beyond that date, use the Online Chat to request an extension.

This report applies to the following model numbers:

Model Number Unit Dimensions (in)
Width  Depth Height
KUMXA181A 37.41 13.00 32.84
KUMXA241A 37.41 13.00 32.84
KUMXA301A 37.41 13.00 32.84
KUMXA361A 37.41 13.00 54.34
KUMXA421A 37.41 13.00 54.34
KUMXA481A 37.41 13.00 54.34
KUMXB181A 34.25 13.00 25.59
KUMXB241A 34.25 13.00 25.59
KUMXB301A 37.41 13.00 32.84
KUMXB361A 37.41 13.00 32.84
KUMXB481A 37.41 13.00 54.34
KUMXB541A 37.41 13.00 54.34
KUMXB601A 37.41 13.00 54.34
KUSXA121A 37.41 13.00 32.84
KUSXA181A 37.41 13.00 32.84
KUSXA241A 37.41 13.00 32.84
KUSXA301A 37.41 13.00 54.34
KUSXA361A 37.41 13.00 54.34
KUSXA421A 37.41 13.00 54.34
KUSXA481A 37.41 13.00 54.34
KUSXB091A 30.31 11.34 21.47
KUSXB121A 30.31 11.34 21.47
KUSXB181A 37.41 13.00 32.84
KUSXB241A 37.41 13.00 32.84
KUSXB301A 37.41 13.00 32.84
KUSXB361A 37.41 13.00 54.34
KUSXB421A 37.41 13.00 54.34
KUSXB481A 37.41 13.00 54.34
KUSXB601A 37.41 13.00 54.34
LMU180HHV 37.41 13.00 32.84
LMU240HHV 37.41 13.00 32.84
LMU300HHV 37.41 13.00 32.84
LMU360HHV 37.41 13.00 54.34
LMU420HHV 37.41 13.00 54.34

What is a TER and how is it used for permitting?

What’s the difference between a TER and a Miami Dade NOA or FL Product Approval?

What do I do if a TER isn’t enough for a permit?

What Doesn’t a TER Do?

Read More & See Applicable Model Numbers
Please select the state you would like the document certified in
Please choose whether this is for a multi-story building or not
This field can't be Empty
This field can't be Empty
Please choose the permitting party
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

As of November 1, 2024, All building departments in Broward county require files submitted to their online permitting portal to be formatted differently. Delray Beach requires the same type of formatting for our TERs instead of selecting individually seal each page.

Need the drawing earlier than 24 hours? We now have the option to expedite it for a fee! Please note expedited orders only applies to digitally signed and sealed documents during our business hours. Any orders placed over the weekend and or after business hours with the expedition fee will be applied to the next business day.

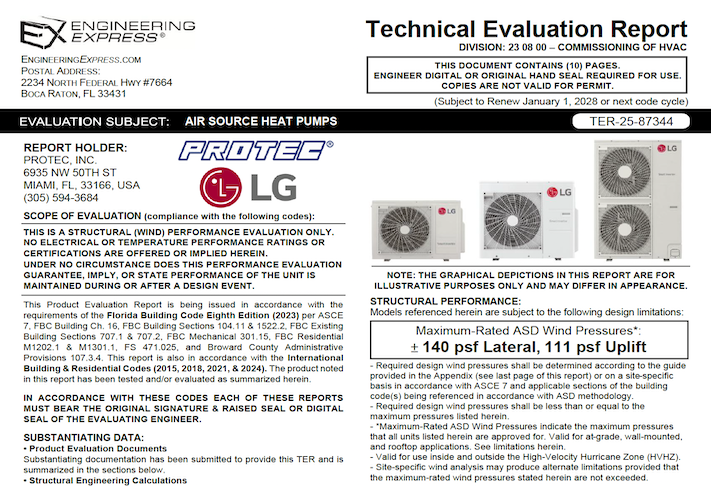

View Sample

Weight 1.0 lbs
Dimensions 8.5 × 11.5 × 0.25 in
Plan Format

Digitally Sealed Online-Only File, Raised Sealed Embossed Physical Copy
Brand

LG
Plan Type

Technical Evaluation Report-TER
Storefront

Engineering Express
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
