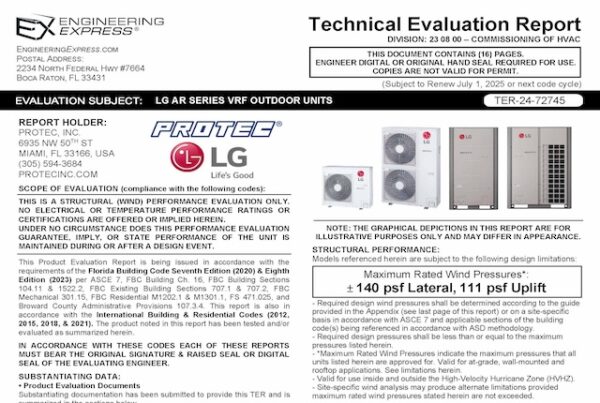

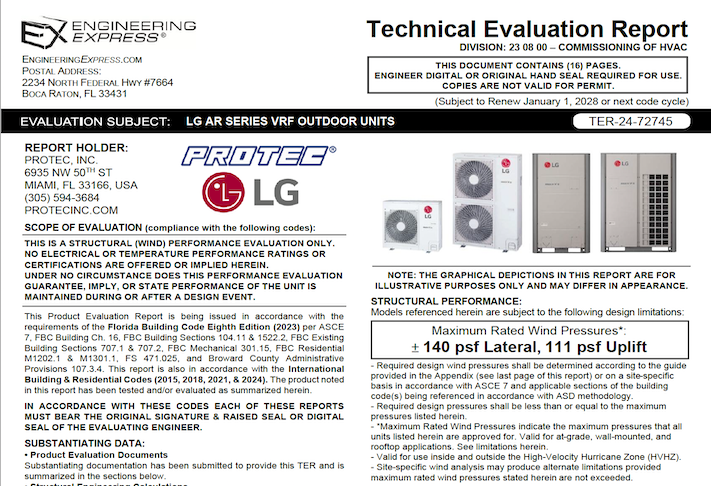

LG AR Series VRF Outdoor Units Evaluation Report

$60.00$80.00 or ( 6 Tokens - 8 Tokens )

This document is sold as an engineer-certified report for permitting LG AR Series VRF Outdoor Units to meet the model numbers listed below. The document meets the requirements of the structural wind integrity per the selected building code above using ASCE 7 for the structural approval of unit housing and tie-down clip capacities. This report will be signed and sealed by a Professional Engineer of the firm when purchased and delivered to you via email (using the digital seal method, within 24 hours) or mail (UPS Ground for printed and signed hardcopies, next day in South Florida). Use it with your site-specific documents to obtain a building permit. (Former TER #22-50599)

Digitally certified documents are licensed to the provided contractor and zip code up to the time frame listed. For extensions beyond that date, use the Online Chat to request an extension.

This report applies to the following model numbers:

Model
Number
Unit Dimensions (in)
Width  Depth Height
ARUN024GSS4 37-13/32 13 32-27/32
ARUM036GSS5 37-13/32 13 54-11/32
ARUM048GSS5 37-13/32 13 54-11/32
ARUN038GSS4 37-13/32 13 54-11/32
ARUN048GSS4 37-13/32 13 54-11/32
ARUN060GSS4 37-13/32 13 54-11/32
ARUN072BSS5 42-29/32 16-17/32 63-31/32
ARUN096BSS5 42-29/32 16-17/32 63-31/32
ARUM072BTE5 36-5/8 29-29/32 66-17/32
ARUM072DTE5 36-5/8 29-29/32 66-17/32
ARUM096BTE5 48-13/16 29-29/32 66-17/32
ARUM096DTE5 48-13/16 29-29/32 66-17/32
ARUM121BTE5 48-13/16 29-29/32 66-17/32
ARUM121DTE5 48-13/16 29-29/32 66-17/32
ARUM144BTE5 48-13/16 29-29/32 66-17/32
ARUM144DTE5 48-13/16 29-29/32 66-17/32
ARUM168BTE5 48-13/16 29-29/32 66-17/32
ARUM168DTE5 48-13/16 29-29/32 66-17/32
ARUM192BTE5 48-13/16 29-29/32 66-17/32
ARUM192DTE5 48-13/16 29-29/32 66-17/32
ARUM216BTE5 48-13/16 29-29/32 66-17/32
ARUM216DTE5 48-13/16 29-29/32 66-17/32
ARUM241BTE5 48-13/16 29-29/32 66-17/32
ARUM241DTE5 48-13/16 29-29/32 66-17/32

What is a TER and how is it used for permitting?

What’s the difference between a TER and a Miami Dade NOA or FL Product Approval?

What do I do if a TER isn’t enough for a permit?

What Doesn’t a TER Do?

Read More
Please select the state you would like the document certified in
This field can't be Empty
This field can't be Empty
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

Weight 1.0 lbs
Dimensions 8.5 × 11.5 × 0.25 in
Plan Format

Digitally Sealed E-Permit File, Raised Sealed Hardcopy

Brand

LG

Plan Designer

Engineering Express

Plan Type

Technical Evaluation Report-TER, Manufacturer Plans

Storefront

Engineering Express

The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
