Pad Depot: 45 x 100 x 4 Foam Core Generator Pad

$30.00 or ( 3 Tokens )

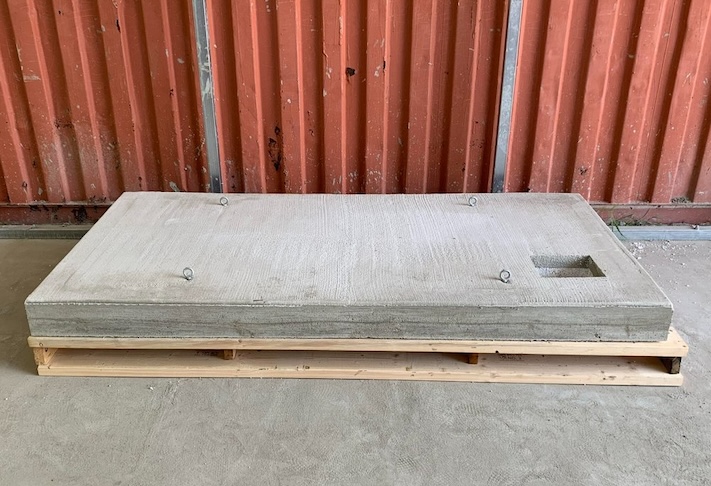

This product is an engineer-sealed report for Pad Depot 45 in x 100 in x 4 in Foam Core Generator Pad and is available as a sealed drawing. The certification is sold as an engineered sealed document and meets the requirements of the selected building code above using ASCE 7 for the approval of structural adequacy only, Approved for Seismic Design Category D (Up to Ss = 2.1),  based on the limitations stated, and upon ordering, will be signed and sealed by a Professional Engineer of the firm.

Use it with your other approved documents to obtain a building permit. It is generic, and installations beyond the scope and limitations of this document shall require site-specific engineering.

Installation variations and site-specific drawings outside the scope of this plan can be quoted using our online smart request form by clicking here.

BRANDS & MODELS FOR PERMIT COVERED WITH THIS PLAN

COMPANY &
MODEL
DIMENSIONS
WIDTH
IN
LENGTH
IN
HEIGHT
IN
GENERAC
RG6024 OR SIMILAR
77 35 47
GENERAC
RG3824 OR SIMILAR
77 35 47
GENERAC
RG036 OR SIMILAR
77 35 47
GENERAC
QT 03624 ANAX OR SIMILAR
77 34 45
GENERAC
RG038-AL OR SIMILAR
77 35 47
GENERAC
RG045-AL OR SIMILAR
77 35 47
GENERAC
QT 04524 ANSX OR SIMILAR
77 34 45
GENERAC
QT 04854 ANAX OR SIMILAR
77 34 45
GENERAC
RG048-AL OR SIMILAR
84 35 46
GENERAC
QT 06024 OR SIMILAR
77 34 45
GENERAC
QT 06030
OR SIMILAR
77 35 47
GENERAC
RG060/
ALUM OR SIMILAR
77 35 47
GENERAC
RG060/
STEEL
OR SIMILAR
77 35 47
KOHLER
38RCL OR SIMILAR
90 33 46
KOHLER
48RCL OR SIMILAR
90 34 46
KOHLER
60RCL  OR SIMILAR
90 33 46
Read More
Please select the state you would like the document certified in
This field can't be Empty
This field can't be Empty
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

Product Documents

Product Documents

Weight .48 lbs
Dimensions 0.01 × 17 × 11 in
Plan Format

Digitally Sealed Online-Only File, Raised Sealed Physical Copy

Plan Type

Master Plan Sheet – MPS

Material

Concrete

Brand

Pad Depot

Storefront

precastpads, Engineering Express

The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
