PVC Fence and Gate Plan – Multiple Styles

$150.00$300.00 or ( 15 Tokens - 30 Tokens )

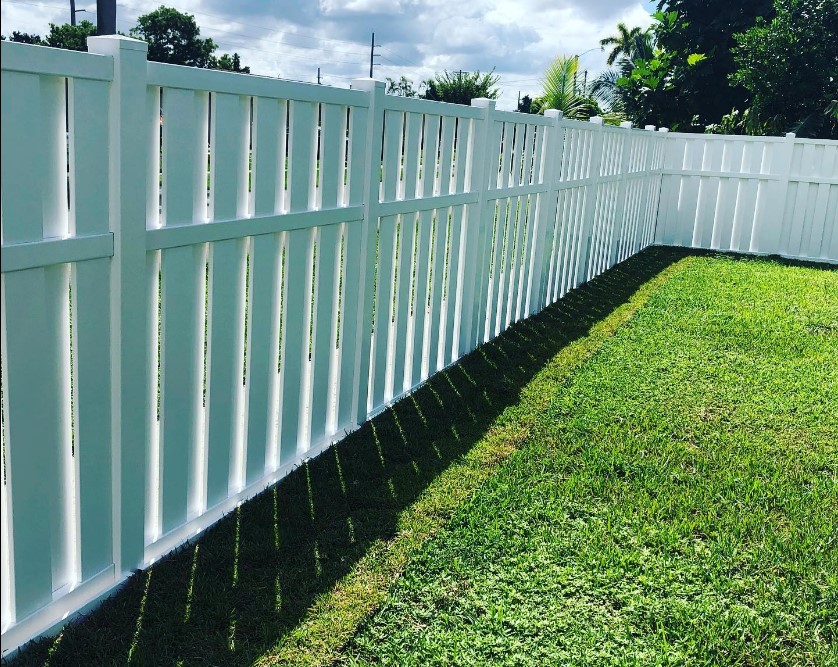

This fence & gate master plan sheet certifies up to a 6′ high PVC fence with single or double gate with multiple style options.  (Former MPS 18-5787, now 20-34756

For residential Applications (up to 250′), please select the Residential Dropdown. Large Residential or Commercial Applications (up to 500′) please select the Large Residential / Commercial Dropdown.

This document has been designed to meet the requirements of the selected Building Code & upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it along with your other project documents to obtain a building permit. It is generic and installations beyond the scope and limitations of this document shall require site-specific engineering.

For site-specific or California projects, click here to request a quote.

Also frequently used for dumpster enclosures for both single and double gate entry doors.

Purchase PVC Fence Parts in South Florida from our friends at PVC Fence Supply.

For a solid tongue & groove PVC Fence, see our other plan by clicking here


Read More
Please select the state you would like the document certified in
This field can't be Empty
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

Read Disclaimer & Important Information for Use
Weight 0.04 lbs
Dimensions 0.0100 × 17.0000 × 11.0000 in
Plan Format

Digitally Sealed File, Sealed Hardcopy

Plan Type

Master Plan Sheet – MPS, Manufacturer Plans




Residential, Large Residential and Commercial
