Raypak: Heat Pump 2023 FBC Update
Raypak: Heat Pump 2023 FBC Update

Raypak: Heat Pump

$60.00 – $80.00 or ( 6 Tokens - 8 Tokens )

This document is sold as an engineer-certified report for permitting a Raypack: Heat Pump Unit meeting model numbers listed below. The document meets the requirements of the structural wind integrity per the selected building code above using ASCE 7 for the structural approval of unit housing and tie-down clip capacities. This report will be signed and sealed by a Professional Engineer of the firm when purchased and delivered to you via email (using the digital seal method, within 24 hours) or mail (UPS Ground for printed and signed hardcopies, next day in South Florida). Use it with your site-specific documents to obtain a building permit. (Former TER #22-56698)

Digitally certified documents are licensed to the provided contractor and zip code up to the time frame listed. For extensions beyond that date, use the Online Chat to request an extension.

This report applies to the following model numbers:

Model Number Unit Dimensions (in)
Width  Depth Height
TWPH-4550EHT08 33 33 37
TWPH-4550EHT10 33 33 37
TWPH-4550EHT11 33 33 37
TWPH-5550EHT08 33 33 37
TWPH-5550EHT10 33 33 37
TWPH-5550EHT11 33 33 37
TPWH-6550EHT08 33 33 37
TPWH-6550EHT10 33 33 37
TPWH-6550EHT11 33 33 37
TWPH-6550EHC08 33 33 37
TWPH-6550EHC11 33 33 37
TWPH-6550EHC11 33 33 37
TWPH-8550EHT08 33 33 37
TWPH-8550EHT10 33 33 37
TWPH-8550EHT11 33 33 37
TWPH-8550EHC08 33 33 37
TWPH-8550EHC10 33 33 37
TWPH-8550EHC11 33 33 37
Read More
Please select the state you would like the document certified in
This field can't be Empty
This field can't be Empty
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

As of November 1, 2024, All building departments in Broward county require files submitted to their online permitting portal to be formatted differently.

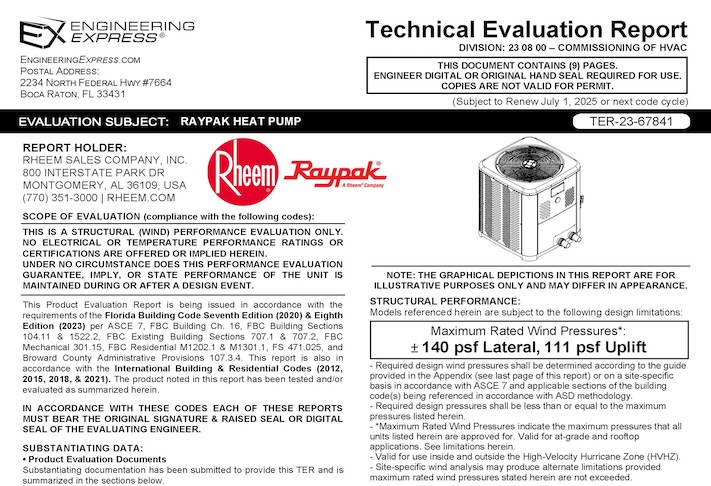

View Sample

Weight 0.08 lbs
Dimensions 11 × 17 × 0.01 in
Brand

Raypak, Rheem
Plan Type

Technical Evaluation Report-TER, Manufacturer Plans
Plan Format

Digitally Sealed Online-Only File, Raised Sealed Physical Copy
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
