Why Topography Matters in Wind Design
Not all building sites are flat. When a structure is located near a hill, ridge, or cliff, wind behavior can change significantly. As wind flows over elevated terrain, it often accelerates and increases the pressure on buildings and structures.
To account for these effects, ASCE 7 introduces the Topographic Factor Kzt , a key multiplier in the wind load equation that adjusts for wind speed-up caused by terrain.
In this article, we’ll explain what Kzt is, when it applies, and how to tell if your site conditions require this important adjustment.
What Is the Topographic Factor Kzt?
The Topographic Factor Kzt is a multiplier used in wind design to adjust the velocity pressure when terrain features like hills or slopes cause wind speeds to increase. It appears directly in the velocity pressure equation:
qz = 0.00256 × Kz × Kzt × Ke × V² where Kzt captures the effects of topography on wind speed.
In flat or gently sloped areas, Kzt is typically 1.0, meaning there’s no change to the wind speed. But in more pronounced terrain, Kzt increases, leading to higher wind pressures on buildings.
This adjustment is important because faster winds exert higher pressure on structures, and without it, buildings in elevated or hilly areas could be under-designed for the stronger wind forces.
The Topographic Factor Kzt is defined in ASCE 7, Chapter 26.8, which explains when and how to calculate it based on the characteristics of the terrain.
By applying Kzt , engineers can ensure buildings are properly designed to handle the increased wind loads that occur in these areas with more significant terrain features.
When Does it Apply?
Kzt applies when a building is positioned in a location where wind speeds can be increased by topographic features. According to ASCE 7-22 Chapter 26.8, the topographic factor should be used only when all of the following conditions are met:
- • The structure is in the upper half of a hill or ridge, or near the crest of an escarpment.
- • The ratio of the feature’s height to length (H⁄Lh) is at least 0.2.
- • The height H of the feature is:
• ≥ 15 ft for Exposure C or D,
• ≥ 60 ft for Exposure B.
When these criteria are met, Kzt is likely greater than 1.0, meaning the terrain is significant enough to amplify wind speeds and must be factored into the wind design.
How Is it Calculated?
The Topographic Factor Kzt is calculated using the following formula:
Kzt = (1 + K1 + K2 + K3)2
Each variable in this formula represents a specific aspect of the terrain and building location:
- • K₁ = Accounts for the type and shape of the feature (hill, ridge, or escarpment) and the maximum speed-up it causes.
- • K₂ = Adjusts for the structure’s distance from the crest, reducing the effect as you move upwind or downwind.
- • K₃ = Adjusts for the height of the structure above local terrain—higher structures experience less of the speed-up effect.
These values are found using ASCE 7 Figure 26.8-1.

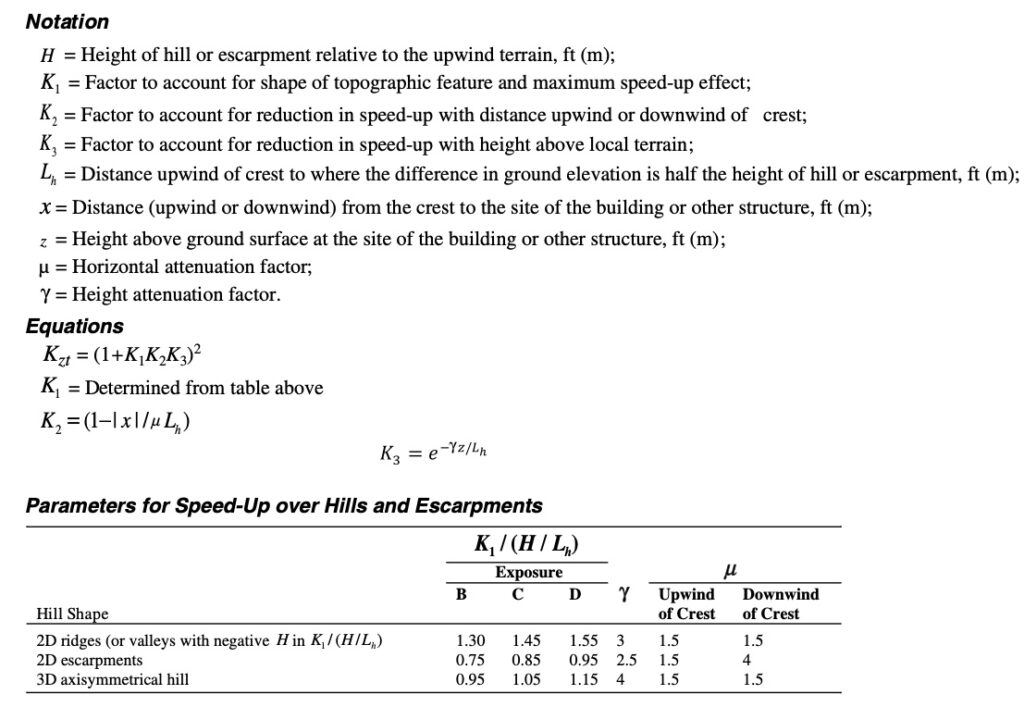

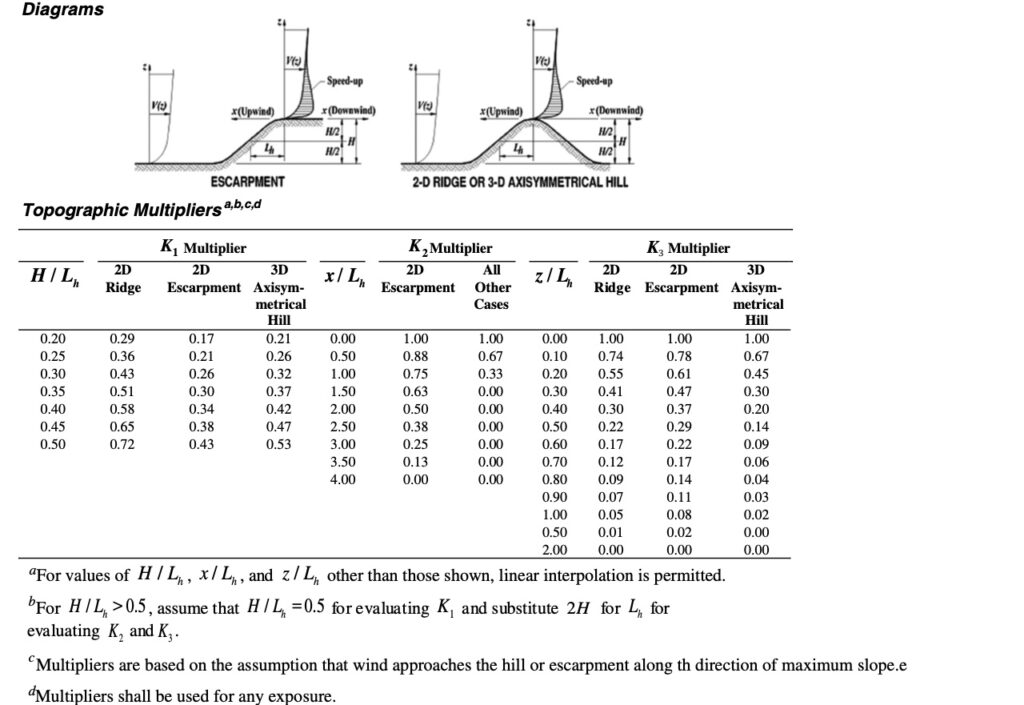

Topographic Factor (Kzt) Calculations – ASCE 7-22, Figure 26.8-1
Remember, the Topographic Factor (Kzt) only needs to be applied when the terrain has significant features like hills, ridges, or escarpments. For flat or gently sloped ground, Kzt is typically 1.0, meaning it has no impact on the wind load calculations. Carefully reviewing site conditions is key to avoiding unnecessary complications in your design.
Always consult a licensed engineer when performing wind load calculations to ensure your design is accurate, code-compliant, and structurally safe.
