American Standard Units (TER 20-28651)


American Standard Units (TER 20-28651)

$30.00$50.00 or ( 3 Tokens - 5 Tokens )

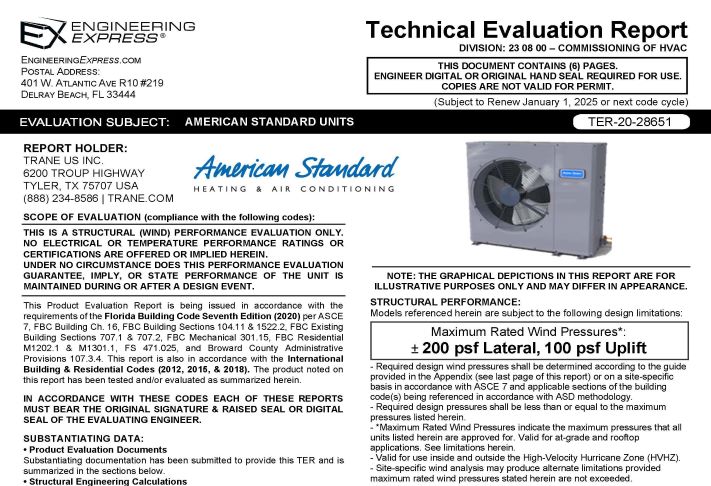

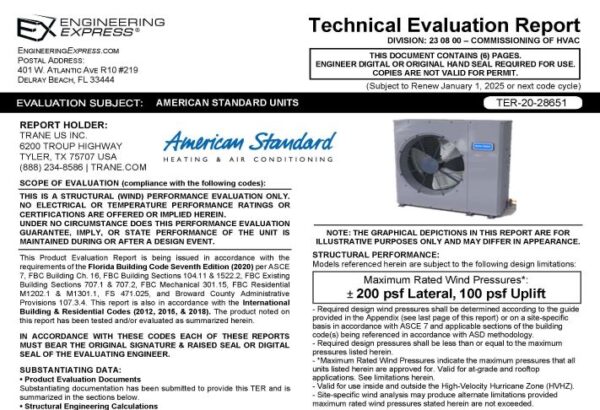

This certification is applicable to the American Standard Unit Models. The certification is sold as an engineered sealed Evaluation Report and meets the requirements of the structural wind integrity per the selected building code for the approval of unit housing and tie-down clip capacities, and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it in conjunction with your other approved documents to obtain a building permit.

This certification is generic and installations beyond this scope or site-specific applications shall require custom engineering that can be performed by Engineering Express. Click here to request a quote.

A/C Model numbersWidth (in)Height (in)Depth (in)Weight (lbs)Type of Cabinet
4A7L6018A1000AA40.0036.7514.50145A
4A7L6024A1000AA40.0036.7514.50145A
4A7L6030A1000AA40.0036.7514.50160A
4A7L6036A1000AA47.0036.7517.50215B
4A7L6042A1000AA47.0036.7517.50216B
4A7L6048A1000AA47.0036.7517.50216B
4A7L6060A1000AA47.0042.7517.50236C
4TTL6018A1000AA40.0036.7514.50145A
4TTL6024A1000AA40.0036.7514.50145A
4TTL6030A1000AA40.0036.7514.50160A
4TTL6036A1000AA47.0036.7517.50215B
4TTL6042A1000AA47.0036.7517.50216B
4TTL6048A1000AA47.0036.7517.50216B
4TTL6060A1000AA47.0042.7517.50236C
H/P Model numbersWidth (in)Height (in)Depth (in)Weight (lbs)Type of Cabinet
4TWL6018A140.0030.7514.50166A
4TWL6024A140.0030.7514.50166A
4TWL6030A147.0036.7517.50195B
4TWL6036A147.0036.7517.50198B
4TWL6042A147.0036.7517.50217B
4TWL6048A147.0042.7517.50239C
4TWL6060A147.0042.7517.50240C
4A6L6018A140.0030.7514.50166A
4A6L6024A140.0030.7514.50166A
4A6L6030A147.0036.7517.50195B
4A6L6036A147.0036.7517.50198B
4A6L6042A147.0036.7517.50217B
4A6L6048A147.0042.7517.50239C
4A6L6060A147.0042.7517.50240C
4TW9024A147.0036.7517.50204B
4TW9036A147.0036.7517.50226B
4TW9048A147.0042.7517.50245C
4TW9060A147.0042.7517.50245C
4A6L9024A147.0036.7517.50204B
4A6L9036A147.0036.7517.50226B
4A6L9048A147.0042.7517.50245C
4A6L9060A147.0042.7517.50245C
This field can't be Empty
This field can't be Empty
Clear
Show Favorites View Sample
Note: Effective June 1, 2021 licensing fees are added to all calculator and plan orders

Weight1.0 lbs
Dimensions11 × 8.5 × 0.25 in
Plan Format

Digitally Sealed File, Sealed Hardcopy

Brand

Carrier Enterprise of Florida

Plan Designer

Engineering Express

Plan Type

Technical Evaluation Report-TER, Manufacturer Plans

Storefront

Carrier, Engineering Express
