Aspen Pump Big Foot: Multi-Frame System – MPS 21-36750

Store Home
big foot stand image
big foot stand image

Aspen Pump Big Foot: Multi-Frame System – MPS 21-36750

$45.00 – $50.00 or ( 4.5 Tokens - 5 Tokens )

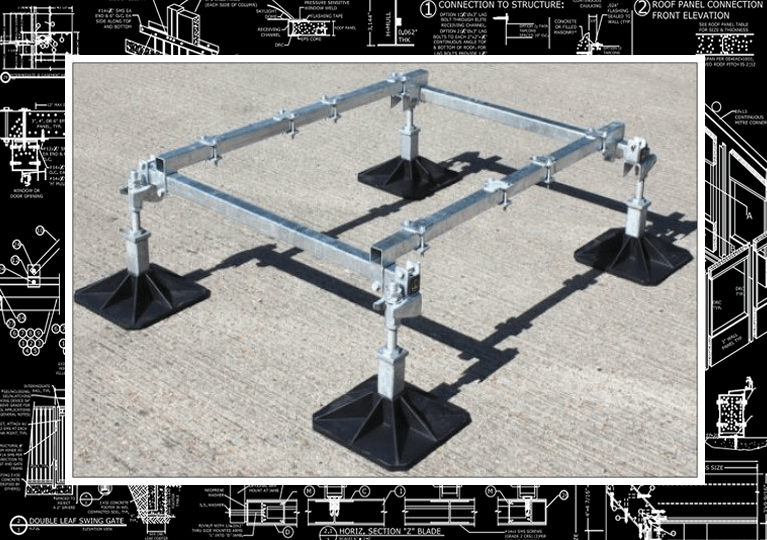

This plan provides structural, non-site specific, master plan sheets for permit of the Aspen Pump Big Foot Multi-frame rooftop stand support.   The document contains a variety of design and mounting conditions.

For site-specific installations and work beyond the limitations of the plan, please submit a site-specific order by visiting www.EngineeringExpress.com/Quote  and use service ESC-1027

To pre-engineer, the required wind pressures for your condition, use our complimentary online tool at https://engineeringexpress.com/asce-7-10-other-structures-design-pressures-calculator/

Visit the manufacturer’s website and learn more about the product here:   https://www.bigfootsupport.com/multi-frame

Read More
Please select the state you would like the document certified in
Please choose whether this is for a multi-story building or not
This field can't be Empty
This field can't be Empty
Please choose the permitting party
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

As of November 1, 2024, All building departments in Broward county require files submitted to their online permitting portal to be formatted differently. Delray Beach requires the same type of formatting for our TERs instead of selecting individually seal each page.

Need the drawing earlier than 24 hours? We now have the option to expedite it for a fee! Please note expedited orders only applies to digitally signed and sealed documents during our business hours. Any orders placed over the weekend and or after business hours with the expedition fee will be applied to the next business day.

View Sample

Product Documents

Sample

Product Documents

Sample

Weight 0.64 lbs
Dimensions 0.08 × 17 × 11 in
Plan Format

Digitally Sealed Online-Only File, Raised Sealed Embossed Physical Copy
Plan Designer

Engineering Express
Plan Type

Master Plan Sheet – MPS, Manufacturer Plans
Brand

Aspen Pumps
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
