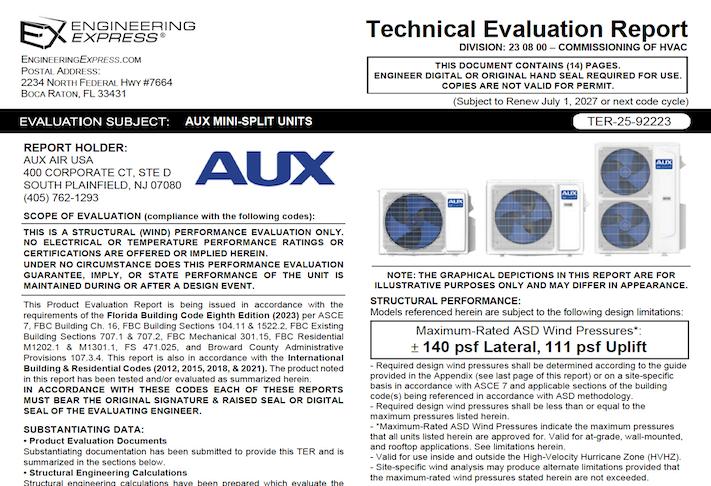

Aux Air: Aux Mini-Split Units Technical Evaluation Report
Aux Air: Aux Mini-Split Units Technical Evaluation Report

Aux Air: Aux Mini-Split Units Technical Evaluation

$70.00 – $90.00 or ( 7 Tokens - 9 Tokens )

This document is sold as an engineer-certified report for permitting Aux Air: Aux Mini-Split Units meeting model numbers listed below. The document meets the requirements of the structural wind integrity per the selected building code above using ASCE 7 for the structural approval of unit housing and tie-down clip capacities. This report will be signed and sealed by a Professional Engineer of the firm when purchased and delivered to you via email (using the digital seal method, within 24 hours) or mail (UPS Ground for printed and signed hard copies, next day in South Florida). Use it with your site-specific documents to obtain a building permit.

Digitally certified documents are licensed to the provided contractor and zip code for the specified timeframe. For extensions beyond that date, use the Online Chat to request an extension.

This report applies to the following model numbers:

Model Number Unit Dimensions (in) Model Number Unit Dimensions (in)
Width  Depth Height  Width  Depth Height
AFEB09HP115V1CO 31-11/16 12-11/64 21-3/16 AJAN24HP230V1CO 38-37/64 15-9/32 27-9/16
AFEB09HP230V1CO 31-11/16 12-11/64 21-3/16 AJAN36HP230V1CO 38-37/64 15-9/32 27-9/16
AFEB12HP115V1CO 31-11/16 12-11/64 21-3/16 AMAR09HP115V1CO 31-11/16 12-11/64 21-3/16
AFEB12HP230V1CO 31-11/16 12-11/64 21-3/16 AMAR09HP230V1CO 31-11/16 12-11/64 21-3/16
AFEB18HP230V2CO 34-41/64 13-57/64 21-59/64 AMAR12HP115V1CO 31-11/16 12-11/64 21-3/16
AFEB24HP230V1CO 38-37/64 15-9/32 27-9/16 AMAR12HP230V1CO 31-11/16 12-11/64 21-3/16
AHU18HPV1AO 38-9/16 15-1/4 27-9/16 AMAR18HP230V1CO 34-41/64 13-57/64 21-59/64
AHU18HPV1BO 38-9/16 15-1/4 27-9/16 AMAR24HP230V1CO 38-37/64 15-9/32 27-9/16
AHU24HPV1AO 38-9/16 15-1/4 27-9/16 ASPR18HPMULO 34-41/64 13-57/64 21-59/64
AHU24HPV1BO 41-3/16 17-15/16 31-13/16 ASPR24HPMULO 38-37/64 15-9/32 27-9/16
AHU30HPV1AO 41-3/16 17-15/16 31-13/16 ASPR30HPMULO 41-3/16 17-59/64 31-13/16
AHU30HPV1BO 39-13/16 15-3/4 51-15/16 ASPR36HPMULO 41-3/16 17-59/64 31-13/16
AHU36HPV1AO 41-3/16 17-15/16 31-13/16 ASPR42HPMULO 41-3/16 17-59/64 31-13/16
AHU36HPV1BO 39-13/16 15-3/4 51-15/16 ASUM18HPMULO 38-37/64 15-9/32 27-9/16
AHU48HPV1AO 39-13/16 15-3/4 51-15/16 ASUM24HPMULO 41-3/16 17-59/64 31-13/16
AHU48HPV1BO 39-13/16 15-3/4 51-15/16 ASUM36HPMULO 39-51/64 15-3/4 51-31/32
AHU60HPV1AO 39-13/16 15-3/4 51-15/16 ASUM42HPMULO 39-51/64 15-3/4 51-31/32
AHU60HPV1BO 39-13/16 15-3/4 51-15/16 AUM20SW09HP115V1/O 31-11/16 12-11/64 21-3/16
AJAN09HP115V1CO 31-11/16 12-11/64 21-3/16 AUM20SW09HP230V1/O 31-11/16 12-11/64 21-3/16
AJAN09HP230V1CO 31-11/16 12-11/64 21-3/16 AUM20SW12HP115V1/O 31-11/16 12-11/64 21-3/16
AJAN12HP115V1CO 31-11/16 12-11/64 21-3/16 AUM20SW12HP230V1/O 31-11/16 12-11/64 21-3/16
AJAN12HP230V1CO 31-11/16 12-11/64 21-3/16 AUM20SW18HP230V1/O 34-41/64 13-57/64 21-59/64
AJAN18HP230V1CO 34-41/64 13-57/64 21-59/64 AUM20SW24HP230V1/O 38-37/64 15-9/32 27-9/16

What is a TER and how is it used for permitting?

What’s the difference between a TER and a Miami Dade NOA or FL Product Approval?

What do I do if a TER isn’t enough for a permit?

What Doesn’t a TER Do?

Read More & See Applicable Model Numbers
Please select the state you would like the document certified in
Please choose whether this is for a multi-story building or not
This field can't be Empty
This field can't be Empty
Please choose the permitting party
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

As of November 1, 2024, All building departments in Broward county require files submitted to their online permitting portal to be formatted differently. Delray Beach requires the same type of formatting for our TERs instead of selecting individually seal each page.

Need the drawing earlier than 48 business hours? We now have the option to expedite it for a fee! Please note expedited orders only applies to digitally signed and sealed documents during our business hours. Any orders placed over the weekend and or after business hours with the expedition fee will be applied to the next business day.

View Sample

Weight 0.8 lbs
Dimensions 11 × 8.5 × 0.0225 in
Plan Format

Digitally Sealed Online-Only File, Raised Sealed Embossed Physical Copy
Brand

Aux Air
Plan Type

Technical Evaluation Report-TER
Storefront

rheem, Engineering Express
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
