                         L-Bent / T-Bent Walkway Cover Calculator (ASD)
                      ASCE 7     Version v16      4/13/20
DISCLAIMER: THIS CALCULATOR IS ONLY VALID FOR FLAT ROOF WALKWAY COVERS WITH ZERO SLOPE
Loading
ASCE:
IBC 03/06/09 = ASCE 7-05
IBC 12/15 = ASCE 7-10
IBC 18 = ASCE 7-16
V : mph
V ult : mph
Exposure:
Risk Cat.:
Live Load: psf
Dead Load: psf
Ground Snow Load: psf
Superstructure
Against Host?
MRH:
Mean Roof Height
ft
URL:
Upper Roof Length
ft
PH:
Parapet Height:
ft
Canopy
Deck Parallel to Walk.?
Post Nearer to Host?
For T-Bents, leave as Yes

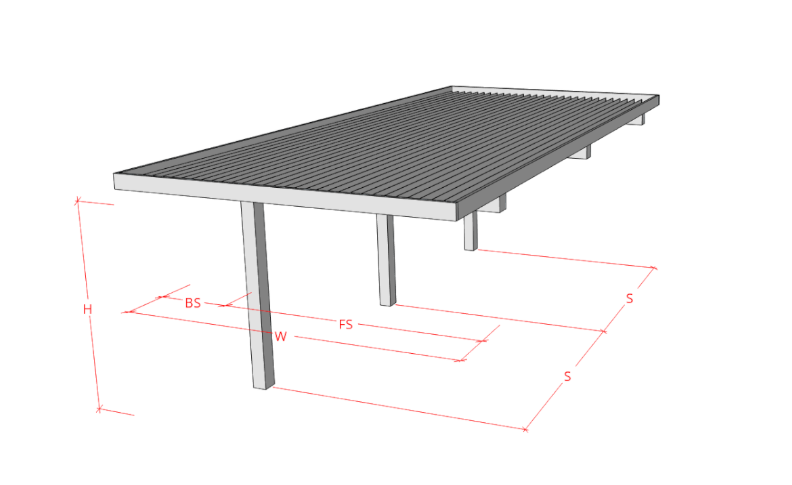

W:
Width
ft
S:
Post Spacing
ft
H:
Height to top of post
ft
BS:
Back Span
ft
FS:
Front Span
ft
No. of Gutt./Pur.:
PS1:
Gutter/Purlin spacing 1
ft
PS2:
Gutter/Purlin spacing 2
ft
PS3:
Gutter/Purlin spacing 3
ft
PS4:
Gutter/Purlin spacing 4
ft
Fascia Height:
When decking is perpendicular to walkway, fascia height is net of fascia height AND beam height parallel to walkway
in
Welded Base Plate?
ASD Load Combinations (Post)
Effective Combinations:
Gravity:
Uplift:
1.
2.
3.
4.
5.
6a.
6b.
7.
8.
Legend:
D = Dead Load Lr = Roof Live Load S = Snow Load W = Wind Load
Decking Capacity

INVALID WITHOUT
ENGINEER SEAL
Purlin Capacity

        INVALID WITHOUT ENGINEER SEAL
Beam Capacity

INVALID WITHOUT
ENGINEER SEAL

INVALID WITHOUT
ENGINEER SEAL
Post Capacity

INVALID WITHOUT
ENGINEER SEAL

INVALID WITHOUT
ENGINEER SEAL
Gusset Capacity
Beam:
Post:
Quantity:
Gusset:
in
2" Washer?
1/2" Bolt Capacity:
ASD Reactions to Host Structure at Base of Post
Post:
Gravity:
Uplift:
Moment:
Lateral:
Foundation Design
USCS Soil Class:
GW: Well-graded gravel
GP: Poorly graded gravel
GM: Silty gravel
GC: Clayey gravel
SW: Well-graded sand
SP: Poorly graded sand
SM: Silty sand
SC: Clayey sand
ML: Silt
CL: Lean clay
OL: Organic clay/silt (low plasticity-LL<50)
MH: Elastic silt
CH: Fat clay
OH: Organic clay/silt (high plasticity-LL>=50)
Footing Diameter:
Footing Depth:
Vertical Rebar:
Stirrups:
  Information
  Rain Load (R) is ignored 334461 332450 313492 312330 303631 281991 280718
  Monoslope, 0 slope, canopies only
  Load Combo 6a reserved as TX canopy engineers not considering roof maintenance during wind/snow design event
  Steel decking Fb calculated to replicate manufacturer tested data for bending/deflection
  Wind direction gamma=90 not considered as worst case tributary on posts occurs a signicant distance away from canopy ends to create average gamma=0,180 coefficients to equal gamma=0 condition
  Drift snow idealized as UDL as analyzing drift for L-Bents against host with post near/far away from host and T-Bents against host becomes too complex to calculate
  For post unity, combined bending and axial for lateral wind and vertical D,W,S and separate check for D,Lr axial without lateral wind as roof TX canopy engineers not considering roof maintenance during wind/snow design event
  Positive sign convention for post moment from wind is clockwise positive
  D+Lr load combination analyzed as full and partial loading to create (2) worst case scenraios of high bending low axial and low bending high axial
  Post allow axial and bending stresses increased to matched VA results via factors in OneNote
  For double posts, moment divided by spacing between posts plus 1" and axial not considered to match results from similar analysis in VA
  Assuming 15 psf soil adhesion for drained clayey soils for footing uplift calculations, however drained soils can result in 0 psf soil adhesion

  Decking (Moment) Load Combinations   Grav Control Uplift Control   Loads
  1 D     D
  2 D     S
  3     Lr
  4     Wp
  5     Wn
  6a     R 0
  6b
  7
  8 0.6D
  Max:

  Decking (Deflection) Load Combinations   Grav Control Uplift Control   Loads
  1 D     D
  2 D     S
  3     Lr
  4     Wp
  5     Wn
  6a     R 0
  6b
  7
  8 0.6D
  Max:

  Beam (Moment) Load Combinations   Grav Control Uplift Control   Loads
  1 D     D
  2 D     S
  3     Lr
  4     Wp
  5     Wn
  6a     R 0
  6b
  7
  8 0.6D
  Max:

  Beam (Deflection) Load Combinations   Grav Control Uplift Control   Loads
  1 D     D
  2 D     S
  3     Lr
  4     Wp
  5     Wn
  6a     R 0
  6b
  7
  8 0.6D
  Max:

  Post Load Combinations (D,Lr)   Grav Control Uplift Control   Loads
  1 D     D
  2 D     S 0.00
  3     Lr
  4     Wp 0.00
  5     Wn 0.00
  6a     R 0
  6b
  7
  8 0.6D
  Max:

  Post Load Combinations (D,W,S) WINDWARD WIND   Grav Control Uplift Control   Loads
  1 D     D
  2 D     S
  3     Lr 0.00
  4     Wp(CNWa)
  5     Wn(CNWb)
  6a     R 0
  6b
  7     F(avg) WLp
  8 0.6D     WLn
  Max:

  Post Load Combinations (D,W,S) LEEWARD WIND   Grav Control Uplift Control   Loads
  1 D     D
  2 D     S
  3     Lr 0.00
  4     Wp(CNLa)
  5     Wn(CNLb)
  6a     R 0
  6b
  7
  8 0.6D
  Max:



  Inputs
  ASCE
  V
  Vult
  Exposure
  Risk
  Live Load 20
  Dead Load 2
  Ground Snow
  Against Host?
  MRH
  URL
  PH
  Deck Parallel to Walk.?
  Post Nearer to Host?
  W
  S
  H
  BS
  FS
  No. of Gutters/Purlins
  PS1
  PS2
  PS3
  PS4
  Fascia Height
  Welded Base Plate?
  Beam (Gusset)
  Post (Gusset)
  Quantity
  Gusset
  2" Washer?
  Post (Reactions)
  USCS Soil Class

  Calculated
  Deck Span
  Purlin Trib Width
  Beam Length
  R1 (moment,beam)
  R2 (moment,beam)
  R3 (moment,beam)
  R4 (moment,beam)
  R5 (moment,beam)
  R1 (def,beam)
  R2 (def,beam)
  R3 (def,beam)
  R4 (def,beam)
  R5 (def,beam)
  R1 (mom,post,D+Lr)
  R2 (mom,post,D+Lr)
  R3 (mom,post,D+Lr)
  R4 (mom,post,D+Lr)
  R5 (mom,post,D+Lr)
  R1 (mom,post,0,G)
  R2 (mom,post,0,G)
  R3 (mom,post,0,G)
  R4 (mom,post,0,G)
  R5 (mom,post,0,G)
  R1 (mom,post,0,U)
  R2 (mom,post,0,U)
  R3 (mom,post,0,U)
  R4 (mom,post,0,U)
  R5 (mom,post,0,U)
  R1 (mom,post,180,G)
  R2 (mom,post,180,G)
  R3 (mom,post,180,G)
  R4 (mom,post,180,G)
  R5 (mom,post,180,G)
  R1 (mom,post,180,U)
  R2 (mom,post,180,U)
  R3 (mom,post,180,U)
  R4 (mom,post,180,U)
  R5 (mom,post,180,U)
  M1 (beam)
  M2 (beam)
  M1 (post,D+Lr)
  M2 (post,D+Lr)
  def1
  def2
  Post Trib Area
  Fascia Height



  Decking Capacity
  Decking   Fb(l) Unity(m) Unity(def)
  3"x6"x0.065" 6063-T6 Pan
  3"x6"x0.079" 6063-T6 Pan
  3"x6"x0.094" 6063-T6 Pan
  2"x8"x0.065" 6063-T6 Pan
  2.75"x6"x0.078" 6063-T6 Pan
  2.75"x6"x0.078" 6063-T6 Cap & Pan
  4.5"x6"x0.078" 6063-T6 Cap & Pan
  6"x6"x0.078" 6063-T6 Cap & Pan
    82.00

  Purlin Capacity
  Purlin   Fb(l) Unity(m) Unity(def)
  12"x3.5"x12ga ASTM A653 Gr. 50 Cee Beam 11.00

  Beam Capacity
  Beam   Fb(l) Unity(m) Unity(def)
  14.95
  21.39
  21.73
  20.70
  14.48
  19.08
  14.72
    21.20
  46.00
  14.16
  14.16
  14.16
  11.00

  Post Capacity
  Post   M(req G,0) M(req U,0) M(req L,0) M(req T,0) V(req,0) Unity(m,0) M(req G,180) M(req U,180) M(req L,180) M(req T,180) V(req,180) Unity(m,180) Axial (D,W,S) Unity(co,D,W,S) M(D+Lr,partial) Unity(D+Lr,partial) Axial (D+Lr,par) Unity(co,D+Lr,par) M(D+Lr,full) Unity(D+Lr,full) Axial (D+Lr,full) Unity(co,D+Lr,full) Unity(tot)






















  Gusset Capacity   M(max) Unity
  1/2" Bolt Capacity

  Reactions to Host Structure
  Reaction Type   Gravity (kip) Uplift (kip) Moment (k-ft) Shear (kip)

  Post Base

  Foundation Design   HOST
  Footing Diameter
  Footing Depth       0   180
  Vertical Rebar
  Stirrups   #4 Rebar @ 12" O.C.

DESIGN CRITERIA:     Exposures
