Diversitech: 230-B3M/L & 230-B2XL Wall Bracket Technical Evaluation Report
Diversitech: 230-B3M/L & 230-B2XL Wall Bracket Technical Evaluation Report

Diversitech: 230-B3M/L & 230-B2XL Wall Bracket Technical Evaluation

$10.00 – $80.00 or ( 10 Tokens - 8 Tokens )

This certification applies to the Diversitech: 230-B3M/L & 230-B2XL Wall Bracket Technical Evaluation Report. It is sold as an engineered, sealed document and meets the requirements of the applicable building code, using ASCE 7-16 & ASCE 7-22, for approval of structural adequacy only. Use it in conjunction with your other approved documents to obtain a building permit.

This certification is sold as an engineered, sealed document and meets the requirements of the current Building Code in the selected state. It is generic, and installations beyond the scope and limitations of this document shall require site-specific engineering.

Note: The host structure, vibratory loads, connection & integrity of the A/C unit are outside the scope of this certification. Performance evaluation is for gravity and wind structural loads only for site-specific installations within the limitations of this plan, as determined by others.

We are not responsible for connecting to the host structure & only provide guidelines for anchors based on their base allowable capacities. The integrity of all supporting surfaces is ensured by others.

For site-specific projects, click here to request a quote.

Read More
Please select the state you would like the document certified in
Please choose whether this is for a multi-story building or not
This field can't be Empty
This field can't be Empty
Please choose the permitting party
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

As of November 1, 2024, All building departments in Broward county require files submitted to their online permitting portal to be formatted differently. Delray Beach requires the same type of formatting for our TERs instead of selecting individually seal each page.

Need the drawing earlier than 48 business hours? We now have the option to expedite it for a fee! Please note expedited orders only applies to digitally signed and sealed documents during our business hours. Any orders placed over the weekend and or after business hours with the expedition fee will be applied to the next business day.

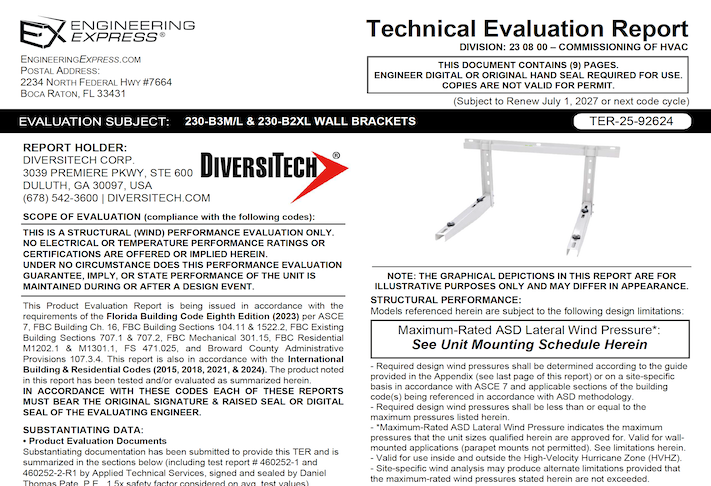

View Sample

Weight .48 lbs
Dimensions 0.01 × 17 × 11 in
Plan Format

Digitally Sealed Online-Only File, Raised Sealed Embossed Physical Copy
Plan Type

Technical Evaluation Report-TER
Material

Aluminum
Storefront

Engineering Express
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
