DiversiTech: Exp. C Up to 175 MPH – Foam-Core Pad Report For Mechanical Unit Installation Permit

$40.00$45.00 or ( 4 Tokens - 4.5 Tokens )

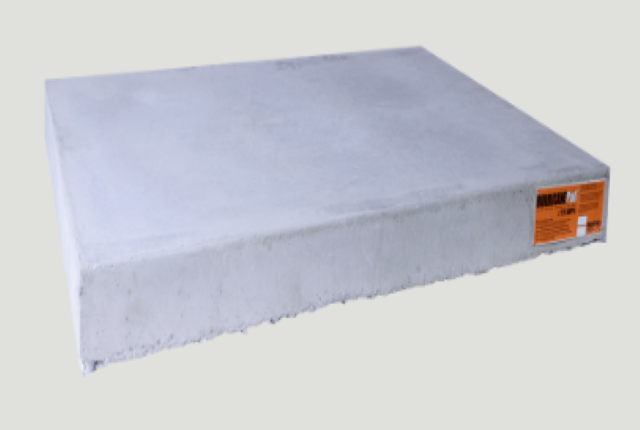

This product is an engineer-sealed report with a chart that lists approved sizes and wind pressure loads for the DiversiTech Precast Foam-Core Concrete Pads for Mechanical Unit Installation in conditions up to 175 MPH / Exposure C. The certification is sold as an engineered sealed document and meets the requirements of the selected building code above,  and upon ordering, will be signed and sealed by a Professional Engineer of the firm.

Use it with your other approved documents to obtain a building permit. It is generic, and installations beyond the scope and limitations of this document shall require site-specific engineering. (Former Plan #22-53411)

Be sure to compare the allowable wind pressure capacities listed in the drawing to those that apply to your project site.

Read More
Please select the state you would like the document certified in
This field can't be Empty
This field can't be Empty
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

Product Documents

Product Documents

Weight 0.16 lbs
Dimensions 0.0100 × 11 × 17 in
Material

Concrete

Plan Type

Master Plan Sheet – MPS, Manufacturer Plans

Plan Format

Digitally Sealed Online-Only File, Raised Sealed Physical Copy

The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
