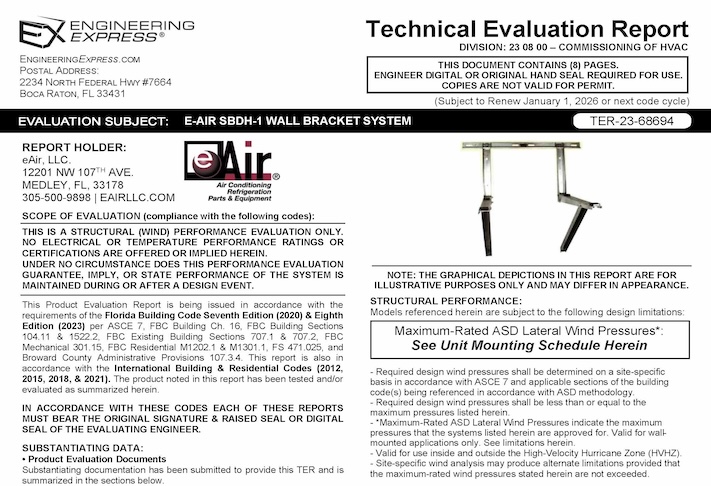

eAir: SBDH-1 Wall Bracket System Technical Evaluation
eAir: SBDH-1 Wall Bracket System Technical Evaluation
$60.00 – $80.00 or ( 6 Tokens - 8 Tokens )
This certification applies to the eAir: SBDH-1 Wall Bracket System Technical Evaluation Report, which meets the bracket system listed below. It is sold as an engineered sealed document and meets the requirements of the applicable building code using ASCE 7-16 & ASCE 7-22 for the approval of structural adequacy only. Use it in conjunction with your other approved documents to obtain a building permit.
This certification is sold as an engineered sealed document and meets the requirements of the current Building Codes in the state selected. It is generic, and installations beyond the scope and limitations of this document shall require site-specific engineering.
This report applies to the following bracket system:
Bracket Schedule | |||
Wall Bracket System | Allowable Bracket Dimensions (in) |
||
Width | Depth | Height | |
SBDH-1 | 33.5 | 23.6 | 17.7 |
Note: The host structure, vibratory loads, connection & integrity of the A/C unit are outside the scope of this certification. This certification is for the Wall Bracket system only.
What is a TER and how is it used for permitting?
What’s the difference between a TER and a Miami Dade NOA or FL Product Approval?
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
