Eastern Metal Supply: 10″ HD Universal Bunk (MPS 21-40534)


Eastern Metal Supply: 10″ HD Universal Bunk (MPS 21-40534)

$50.00$75.00 or ( 5 Tokens - 7.5 Tokens )

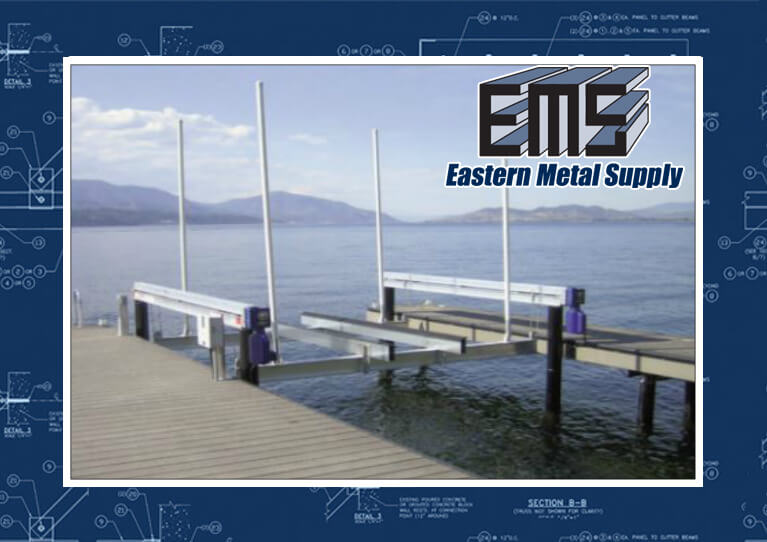

This master plan sheet certifies a variety of installation conditions for  Eastern Metal Supply’s 10′ HD Universal Bunk.   It certifies a core drill installation for an above-grade condition. This document has been designed to meet the requirements of the selected Building Code inside and outside the HVHZ1  and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it along with your other project documents to obtain a building permit. Previous MPS 19-7778.

This certification is generic and installations beyond this scope or site-specific applications shall require custom engineering that can be performed by Engineering Express.  Click here to request a quote.

HVHZ= High Velocity Hurricane Zone in S. Florida

This field can't be Empty
This field can't be Empty
Clear
Show Favorites View Sample
Note: Effective June 1, 2021 licensing fees are added to all calculator and plan orders

Weight.48 lbs
Dimensions.1 × 11 × 17 in
Plan Format

Digitally Sealed File, Sealed Hardcopy

Plan Type

Master Plan Sheet – MPS, Manufacturer Plans

Material

Aluminum

Brand

Eastern Metal Supply

Plan Designer

Engineering Express

Storefront

Eastern Metal Supply, Engineering Express
