Weight | .96 lbs |
---|---|
Dimensions | .01 × 11 × 17 in |
Plan Format | Digitally Sealed File, Sealed Hardcopy |
Plan Type | Master Plan Sheet – MPS, Manufacturer Plans |
Storefront | Eastern Metal Supply, Engineering Express |
Material | Aluminum |
Eastern Metal Supply: Canopy with Overhead Support System
Store Home
Read MoreRead Less
Read Disclaimer & Important Information for Use
Eastern Metal Supply: Canopy with Overhead Support System
$150.00 – $200.00 or ( 15 Tokens - 20 Tokens )

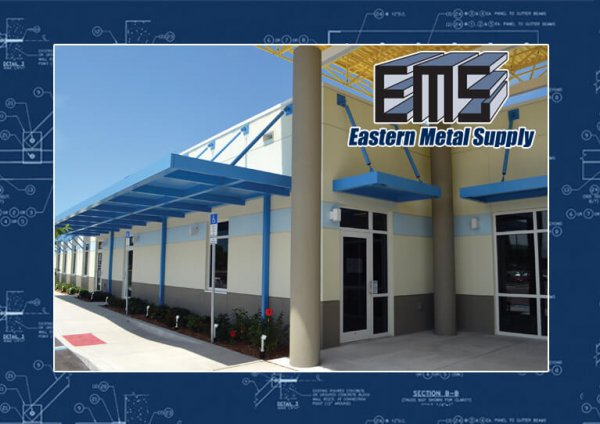

This master plan sheet provides span, connection, and wind pressure design for Eastern Metal Supply’s Canopy with Overhead Support System to a variety of installation conditions. This document has been designed to meet the requirements of the selected Building Code inside and outside the HVHZ1 and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it along with your other project documents to obtain a building permit.
HVHZ= High-Velocity Hurricane Zone in S. Florida
Product Documents
Sample Documents
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
