Eastern Metal Supply: Sunshade and Airfoil (MPS 21-40524)


Eastern Metal Supply: Sunshade and Airfoil (MPS 21-40524)

$100.00$180.00 or ( 10 Tokens - 18 Tokens )

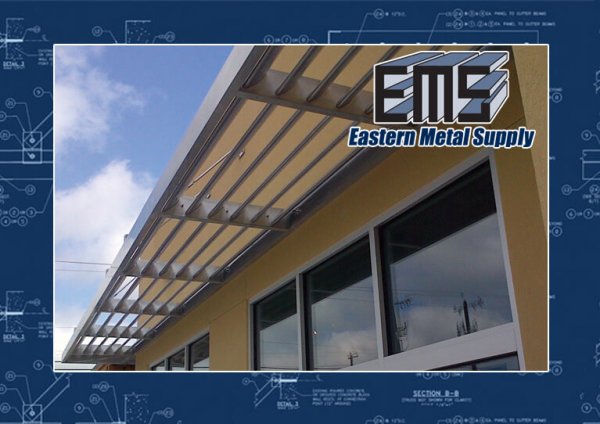

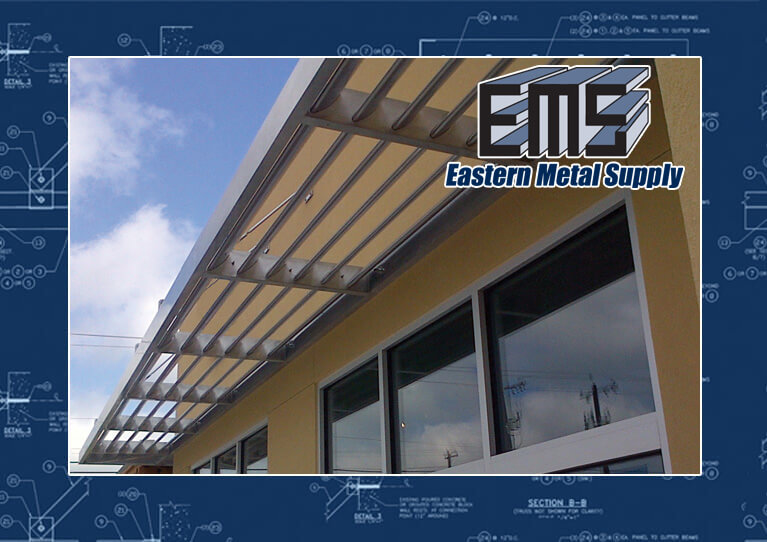

This master plan sheet provides certification for wind pressure loading and connection details for  Eastern Metal Supply’s Sunshade and Airfoil building wall-mounted system.  This document has been designed to meet the requirements of the selected  Building Code inside and outside the HVHZ1  and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it along with your other project documents to obtain a building permit. Previous MPS 17-5524.

This certification is generic and installations beyond this scope or site-specific applications shall require custom engineering that can be performed by Engineering Express.  Click here to request a quote.

HVHZ= High Velocity Hurricane Zone in S. Florida

This field can't be Empty
This field can't be Empty
Clear
Show Favorites View Sample
Note: Effective June 1, 2021 licensing fees are added to all calculator and plan orders

Product Documents

Weight.96 lbs
Dimensions.01 × 11 × 17 in
Plan Format

Digitally Sealed File, Sealed Hardcopy

Plan Type

Master Plan Sheet – MPS, Manufacturer Plans

Plan Designer

Engineering Express

Storefront

Eastern Metal Supply, Engineering Express

Brand

Eastern Metal Supply

Material

Aluminum
