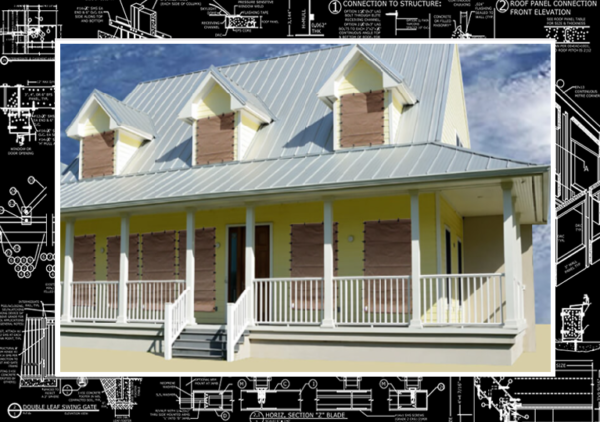

Image of Hurricane Fabric on a House

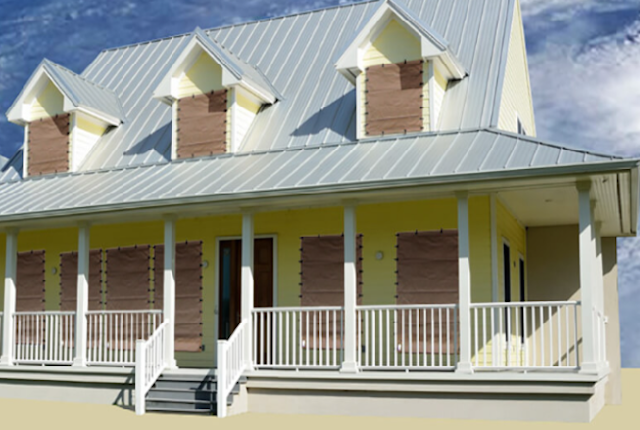

Image of Hurricane Fabric on a House

Hurricane Fabric: AstroGuard – Fabric Hurricane Protection System (MPS 20-29198)

$160.00 – $220.00 or ( 16 Tokens - 22 Tokens )

This master plan sheet certifies a variety of installation conditions for the Hurricane Fabric – AstroGuard – Fabric Hurricane Protection System. . This document has been designed to meet the requirements of the referenced building code and upon ordering will be signed and sealed by a Professional Engineer of the firm. Use it along with your other project documents to obtain a building permit.

Contractors: For site-specific projects, click here to apply for membership and request a quote.

How To Use This Document:

  1. Determine the site-specific design pressures for the area in question by an approved design method (by others or by separate certification).  Click Here for help.
  2. Match up the substrate along with each opening’s pressures to the approved ratings and anchorage requirements on this plan.
  3. Check local codes for any additional requirements prior to applying for a permit (such as egress, separation from glass, fire, and other requirements which are outside the scope of this certification)
  4. Submit this generic performance evaluation along with all other site-specific project information to the governing building department for permit.
Read More
Please select the state you would like the document certified in
Please choose whether this is for a multi-story building or not
This field can't be Empty
This field can't be Empty
Please choose the permitting party
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

As of November 1, 2024, All building departments in Broward county require files submitted to their online permitting portal to be formatted differently. Delray Beach requires the same type of formatting for our TERs instead of selecting individually seal each page.

Need the drawing earlier than 24 hours? We now have the option to expedite it for a fee! Please note expedited orders only applies to digitally signed and sealed documents during our business hours. Any orders placed over the weekend and or after business hours with the expedition fee will be applied to the next business day.

View Sample

Product Documents

Sample Documents

Product Documents

Sample Documents

Weight .48 lbs
Dimensions .1 × 11 × 17 in
Plan Format

Digitally Sealed Online-Only File, Raised Sealed Embossed Physical Copy
Plan Type

Master Plan Sheet – MPS, Manufacturer Plans
Material

Fabric
Brand

Hurricane Fabric
Plan Designer

Engineering Express
Storefront

Engineering Express
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
