ICP: Split System Units Technical Evaluation Report 2023 Update
ICP: Split System Units Technical Evaluation Report 2023 Update

ICP: Split System Units

$60.00 – $80.00 or ( 6 Tokens - 8 Tokens )

This document is sold as an engineer-certified report for permitting ICP: Split System Units meeting model numbers listed below. The document meets the requirements of the structural wind integrity per the selected building code above using ASCE 7 for the structural approval of unit housing and tie-down clip capacities. This report will be signed and sealed by a Professional Engineer of the firm when purchased and delivered to you via email (using the digital seal method, within 24 hours) or mail (UPS Ground for printed and signed hardcopies, next day in South Florida). Use it with your site-specific documents to obtain a building permit. (Former TER #20-33364)

Digitally certified documents are licensed to the provided contractor and zip code up to the time frame listed. For extensions beyond that date, use the Online Chat to request an extension.

This report applies to the following model numbers:

Unit model Unit dimensions (in) Unit model Unit dimensions (in)
Width Depth Height Width Depth Height
C5H6S18*K 31.1875 31.1875 32.0625 NXA636 35 35 28.31
C5H6S24*K 31.1875 31.1875 35.5 NXA642 35 35 39.13
C5H6S30*K 31.1875 31.1875 38.875 NXA642 35 35 39.13
C5H6S36*K 31.1875 31.1875 32.0625 NXA648 35 35 32.31
C5H6S42*K 31.1875 31.1875 32.125 NXA648 35 35 32.31
C5H6S48*K 31.1875 31.1875 38.875 NXA649 35 35 39.13
C5H6S60*K 35 35 35.5 NXA649 35 35 39.13
H5H6S18*K 31.1875 31.1875 32.0625 NXA660 35 35 45.94
H5H6S24*K 31.1875 31.1875 35.5 NXA660 35 35 45.94
H5H6S30*K 31.1875 31.1875 38.875 NXA661 35 35 45.94
H5H6S36*K 31.1875 31.1875 32.0625 NXA661 35 35 45.94
H5H6S42*K 31.1875 31.1875 32.125 NXH518 31.19 31.19 28.94
H5H6S48*K 31.1875 31.1875 38.875 NXH524 35 35 32.31
H5H6S60*K 35 35 35.5 NXH530 35 35 32.31
N4A330GHC 23 1/8 23 1/8 28  11/16 NXH530 35 35 32.31
N4A336GHB 25  3/4 25  3/4 31  13/16 NXH536 35 35 35.75
N4A336GLB 25  3/4 25  3/4 31  13/16 NXH536 35 35 35.75
N4A336GSB 25  3/4 25  3/4 31  13/16 NXH542 35 35 28.94
N4A342GHA 31  3/16 31  3/16 32 5/16 NXH542 35 35 28.94
N4A342GLA 31  3/16 31  3/16 32 5/16 NXH548 35 35 28.94
N4A348GHB 31  3/16 31  3/16 35 3/4 NXH548 35 35 28.94
N4A348GLB 31  3/16 31  3/16 35 3/4 NXH560 35 35 39.13
N4A348GSB 31  3/16 31  3/16 35 3/4 NXH560 35 35 39.13
N4A360GHC 31  3/16 31  3/16 28 15/16 R4A418 23.13 23.13 24.81
N4A360GLC 31  3/16 31  3/16 28 15/16 R4A424 25.75 25.75 25
N4A360GSC 31  3/16 31  3/16 28 15/16 R4A430 31.19 31.19 31.81
N4A5S18*K*WA 25  3/4 25  3/4 28  11/16 R4A436 31.19 31.19 24.81
N4A5S24*K*WA 25  3/4 25  3/4 35  1/2 R4A442 31.19 31.19 39.13
N4A5S30*K*WA 31  3/16 31  3/16 35  1/2 R4A448 31.19 31.19 28.44
N4A5S36*K*WA 31  3/16 31  3/16 38 7/8 R4A460 31.19 31.19 31.81
N4A5S42*K*WA 31  3/16 31  3/16 32 1/16 R4A5S18*K*WA 25  3/4 25  3/4 28  11/16
N4A5S48*K*WA 31  3/16 31  3/16 32 1/16 R4A5S24*K*WA 25  3/4 25  3/4 35  1/2
N4A5S60*K*WA 31  3/16 31  3/16 38 7/8 R4A5S30*K*WA 31  3/16 31  3/16 35  1/16
N4A724GKA 31.19 31.19 32.5 R4A5S36*K*WA 31  3/16 31  3/16 38 7/16
N4A736GKA 31.19 31.19 32.5 R4A5S42*K*WA 31  3/16 31  3/16 31 11/16
N4A748GKA 35 35 38.88 R4A5S48*K*WA 31  3/16 31  3/16 31 11/16
N4A760GKA 35 35 38.88 R4A5S49*K*WA 35 35 45 11/16
N4A7T24*K*WA 31 3/16 31 3/16 35 1/2 R4A5S60*K*WA 31  3/16 31  3/16 38 7/16
N4A7T36*K*WA 35 35 32 1/16 R4A5S61*K*WA 35 35 45 11/16
N4A7T48*K*WA 35 35 38 7/8 R4H418 23.13 23.13 35.25
N4A7T60*K*WA 35 35 38 7/8 R4H424 25.75 25.75 35.25
N4H418 23.13 23.13 35.25 R4H430 31.19 31.19 31.81
N4H418 23.13 23.13 35.25 R4H436 31.19 31.19 28.44
N4H424 25.75 25.75 38.5 R4H442 31.19 31.19 39.13
N4H424 25.75 25.75 38.5 R4H448 31.19 31.19 28.44
N4H430 31.19 31.19 31.81 R4H460 31.19 31.19 31.81
N4H430 31.19 31.19 31.81 R4H5S18*K*AA 31  3/16 31  3/16 28.25
N4H436 31.19 31.19 28.44 R4H5S24*K*AA 31  3/16 31  3/16 31 11/16
N4H436 31.19 31.19 28.44 R4H5S30*K*AA 31  3/16 31  3/16 28.25
N4H442 31.19 31.19 39.13 R4H5S36*K*AA 31  3/16 31  3/16 28.25
N4H442 31.19 31.19 39.13 R4H5S42*K*AA 31  3/16 31  3/16 31 11/16
N4H448 31.19 31.19 28.44 R4H5S48*K*AA 31  3/16 31  3/16 35  1/16
N4H448 31.19 31.19 28.44 R4H5S60*K*AA 35 35 38 7/8
N4H460 31.19 31.19 31.81 T5H6S18*K 31.1875 31.1875 32.0625
N4H460 31.19 31.19 31.81 T5H6S24*K 31.1875 31.1875 35.5
N4H5S18*K*AA 31  3/16 31  3/16 28.6875 T5H6S30*K 31.1875 31.1875 38.875
N4H5S24*K*AA 31  3/16 31  3/16 32 1/16 T5H6S36*K 31.1875 31.1875 32.0625
N4H5S30*K*AA 31  3/16 31  3/16 28.6875 T5H6S42*K 31.1875 31.1875 32.125
N4H5S36*K*AA 31  3/16 31  3/16 28.6875 T5H6S48*K 31.1875 31.1875 38.875
N4H5S42*K*AA 31  3/16 31  3/16 32 1/16 T5H6S60*K 35 35 35.5
N4H5S48*K*AA 31  3/16 31  3/16 35.5 C5A6S18* 31.1875 31.1875 38.9375
N4H5S60*K*AA 35 35 38 7/8 C5A6S24* 31.1875 31.1875 38.9375
N4H7T24*K*AA 35 35 35 1/2 C5A6S3.* 31.1875 31.1875 38.9375
N4H7T36*K*AA 35 35 38 7/8 C5A6S36* 31.1875 31.1875 38.9375
N4H7T48*K*AA 35 35 45 11/16 C5A6S42* 31.1875 31.1875 38.9375
N4H7T60*K*AA 35 35 45 11/16 C5A6S48* 31.1875 31.1875 38.9375
N5H5S18*K 31.1875 31.1875 32.0625 C5A6S60* 31.1875 31.1875 38.9375
N5H5S24*K 31.1875 31.1875 35.5 H5A6S18* 31.1875 31.1875 38.9375
N5H5S30*K 31.1875 31.1875 38.875 H5A6S24* 31.1875 31.1875 38.9375
N5H5S36*K 31.1875 31.1875 32.0625 H5A6S30* 31.1875 31.1875 38.9375
N5H5S42*K 31.1875 31.1875 32.0625 H5A6S36* 31.1875 31.1875 38.9375
N5H5S48*K 31.1875 31.1875 38.875 H5A6S42* 31.1875 31.1875 38.9375
N5H5S60*K 35 35 35.5 H5A6S48* 31.1875 31.1875 38.9375
NXA418 23.13 23.13 24.81 H5A6S60* 31.1875 31.1875 38.9375
NXA418 23.13 23.13 24.81 T5A6SS18* 31.1875 31.1875 38.9375
NXA424 25.75 25.75 25 T5A6SS24* 31.1875 31.1875 38.9375
NXA424 25.75 25.75 25 T5A6SS30* 31.1875 31.1875 38.9375
NXA430 31.19 31.19 31.81 T5A6SS36* 31.1875 31.1875 38.9375
NXA430 31.19 31.19 31.81 T5A6SS42* 31.1875 31.1875 38.9375
NXA436 31.19 31.19 24.81 T5A6SS48* 31.1875 31.1875 38.9375
NXA436 31.19 31.19 24.81 T5A6SS60* 31.1875 31.1875 38.9375
NXA442 31.19 31.19 39.13 N5A5S18* 31.1875 31.1875 38.875
NXA442 31.19 31.19 39.13 N5A5S24* 31.1875 31.1875 38.875
NXA448 31.19 31.19 28.44 N5A5S30* 31.1875 31.1875 38.875
NXA448 31.19 31.19 28.44 N5A5S36* 31.1875 31.1875 38.875
NXA460 31.19 31.19 31.81 N5A5S42* 31.1875 31.1875 38.875
NXA460 31.19 31.19 31.81 N5A5S48* 31.1875 31.1875 38.875
NXA618 23.13 23.13 28.69 N5A5S60* 31.1875 31.1875 38.875
NXA618 23.13 23.13 28.69 R5A5S18* 31.1875 31.1875 38.4375
NXA624 31.19 31.19 28.31 R5A5S24* 31.1875 31.1875 38.4375
NXA624 31.19 31.19 28.31 R5A5S30* 31.1875 31.1875 38.4375
NXA630 31.19 31.19 32.31 R5A5S36* 31.1875 31.1875 38.4375
NXA630 31.19 31.19 32.31 R5A5S42* 31.1875 31.1875 38.4375
NXA636 35 35 28.31 R5A5S48* 31.1875 31.1875 38.4375
R5A5S60* 31.1875 31.1875 38.4375

What is a TER and how is it used for permitting?

What’s the difference between a TER and a Miami Dade NOA or FL Product Approval?

What do I do if a TER isn’t enough for a permit?

What Doesn’t a TER Do?

Read More
Please select the state you would like the document certified in
This field can't be Empty
This field can't be Empty
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

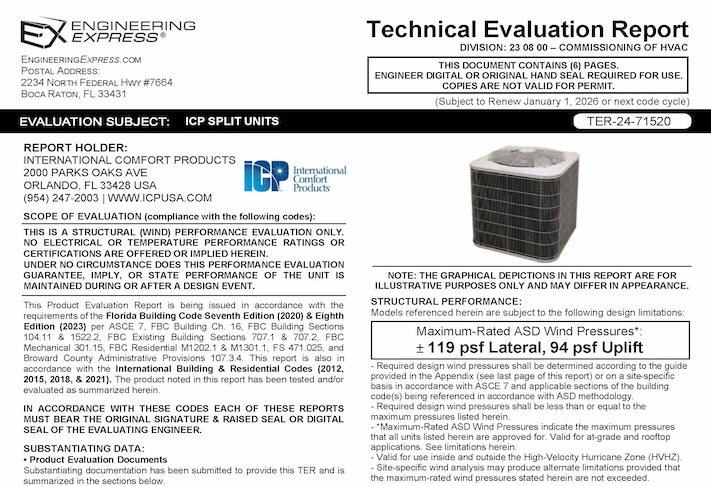

View Sample

Weight 0.05 lbs
Dimensions 0.0100 × 8.5000 × 11.0000 in
Plan Format

Digitally Sealed E-Permit File, Raised Sealed Hardcopy
Brand

Carrier, ICP
Plan Type

Technical Evaluation Report-TER, Manufacturer Plans
Storefront

Carrier, Engineering Express
The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
