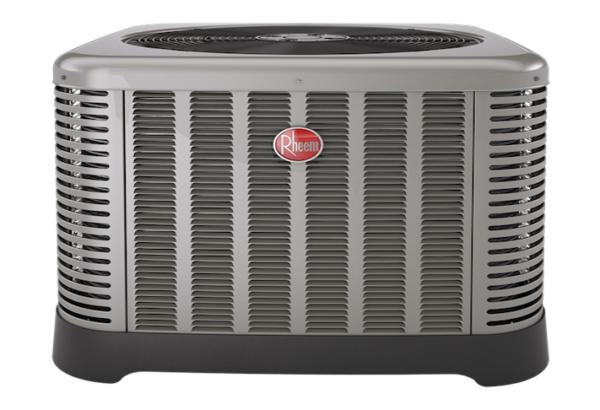

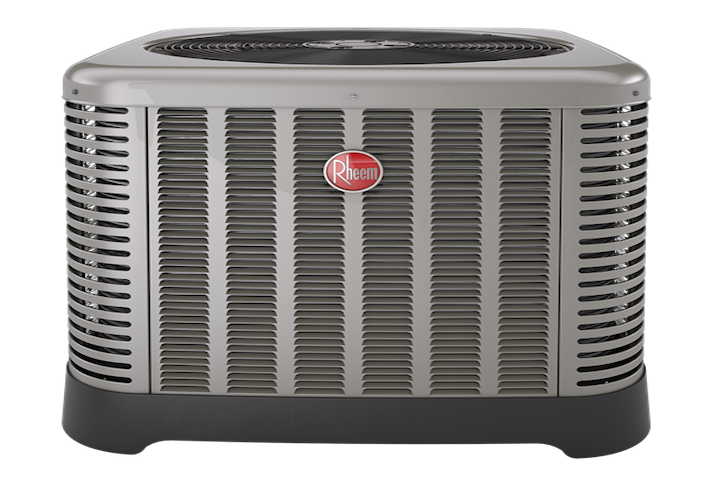

Rheem: Mechanical Unit Cabinetry And Tie-Down Clips For Ground And Rooftop Performance Evaluation

This document is sold as an engineer-certified report for permitting Rheem’s Mechanical Unit Cabinetry And Steel/Aluminum Tie-Down Clips For At-Grade And Rooftop Applications and is available as a sealed drawing. The document meets the requirements of the structural wind integrity per the selected building code above using ASCE 7 for the structural approval of unit housing and tie-down clip capacities. This report will be signed and sealed by a Professional Engineer of the firm when purchased and delivered to you via email (using the digital seal method, within 24 hours) or mail (UPS Ground for printed and signed hardcopies, next day in South Florida). Use it with your site-specific documents to obtain a building permit. (Former #23-67846 and 23-67851)

Digitally certified documents are licensed to the provided contractor and zip code up to the time frame listed. For extensions beyond that date, you can use the Online Chat to request an extension.

This product can be used with the following:

• Roof Mounted
  • 31-inch – All Rheem models (M & M1 cabinet) that fit within the specified cabinetry dimensions and unit construction.
  • 35-inch – All Rheem models (M & M1 cabinet) that fit within the specified cabinetry dimensions and unit construction.
  • 39-inch – All Rheem models (M & M1 cabinet) that fit within the specified cabinetry dimensions and unit construction.
  • 51-inch – All Rheem models (M & M1 cabinet) that fit within the specified cabinetry dimensions and unit construction.

For site-specific projects, click here to request a quote.
