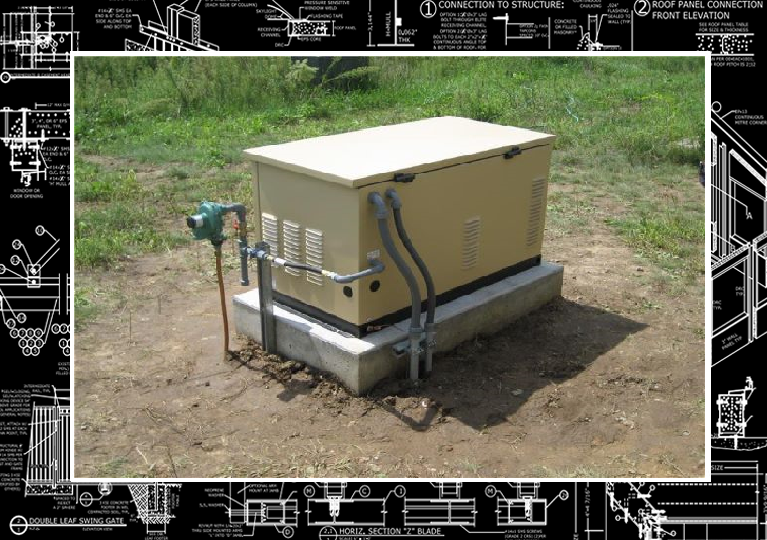

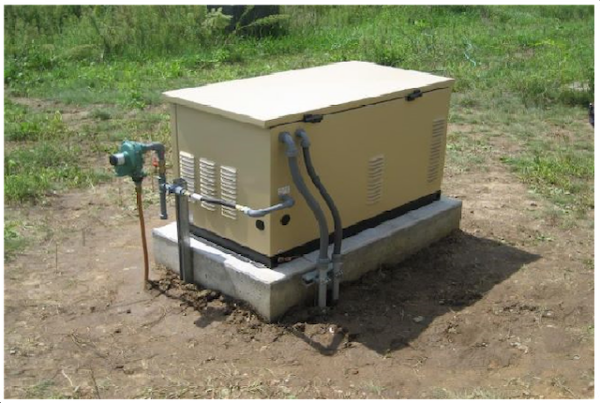

Pad Depot: 54 x 32 x 6 Solid Concrete Generator Pad

$30.00 or ( 3 Tokens )

This product is an engineer-sealed report for Pad Depot 54 x 32 x 6 Solid Concrete Generator Pad and is available as a sealed drawing. The certification is sold as an engineered sealed document and meets the requirements of the selected building code above using ASCE 7 for the approval of structural adequacy only, Approved for Seismic Design Category D (Up to Ss = 2.1), based on the limitations stated, and upon ordering, will be signed and sealed by a Professional Engineer of the firm.

Use it with your other approved documents to obtain a building permit. It is generic, and installations beyond the scope and limitations of this document shall require site-specific engineering. (Former Plan #22-50620)

Installation variations and site-specific drawings outside the scope of this plan can be quoted using our online smart request form by clicking here.

BRANDS & MODELS FOR PERMIT COVERED WITH THIS PLAN

COMPANY DIMENSIONS (IN)
WIDTH IN LENGTH
IN
HEIGHT
IN
GENERAC
GUARDIAN 5882, 7171
OR SIMILAR
48 25 29
GENERAC
GUARDIAN 7223, 7224,
7225, OR SIMILAR
48 25 29
GENERAC
GUARDIAN 7176, 7177,
7178, OR SIMILAR
48 25 29
GENERAC
GUARDIAN 5873, 5885,
OR SIMILAR
48 25 29
GENERAC
GUARDIAN 7226, 7228,
OR SIMILAR
48 25 29
GENERAC
GUARDIAN 7038, 7039,
7077, OR SIMILAR
48 25 29
GENERAC
GUARDIAN 7042, 7043,
OR SIMILAR
48 25 29
GENERAC
GUARDIAN 7209, 7210,
OR SIMILAR
48 25 29
GENERAC
GUARDIAN 7290, 7291,
OR SIMILAR
48 25 29
KOHLER
14 RCA OR SIMILAR
47 26 33
KOHLER
14 RCA OR SIMILAR
47 26 33
KOHLER
14 RCA OR SIMILAR
48 26 29
KOHLER
14 RCA OR SIMILAR
48 26 29
KOHLER
20 RCA OR SIMILAR
47 26 33
KOHLER
20 RCA OR SIMILAR
47 26 33
KOHLER
20 RCA OR SIMILAR
48 26 29
KOHLER
20 RCA OR SIMILAR
48 26 29
Read More
Please select the state you would like the document certified in
This field can't be Empty
This field can't be Empty
This field can't be Empty
Save up to an additional 33% by using tokens Learn more

As of November 1, 2024, All building departments in Broward county require files submitted to their online permitting portal to be formatted differently.

Product Documents

Product Documents

Weight .48 lbs
Dimensions 0.01 × 17 × 11 in
Plan Format

Digitally Sealed Online-Only File, Raised Sealed Physical Copy

Plan Type

Master Plan Sheet – MPS, Manufacturer Plans

Material

Concrete

Brand

Pad Depot

Plan Designer

Engineering Express

Storefront

precastpads, Engineering Express

The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
