PARKER DAVIS: Outdoor Mini-Split Units

Store Home
PARKER DAVIS: Outdoor Mini-Split Units
PARKER DAVIS: Outdoor Mini-Split Units

PARKER DAVIS: Outdoor Mini-Split Units

$60.00 – $80.00 or ( 6 Tokens - 8 Tokens )

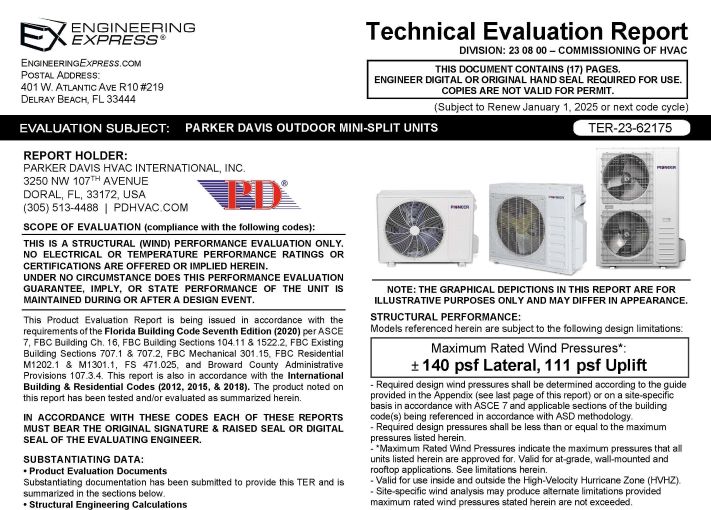

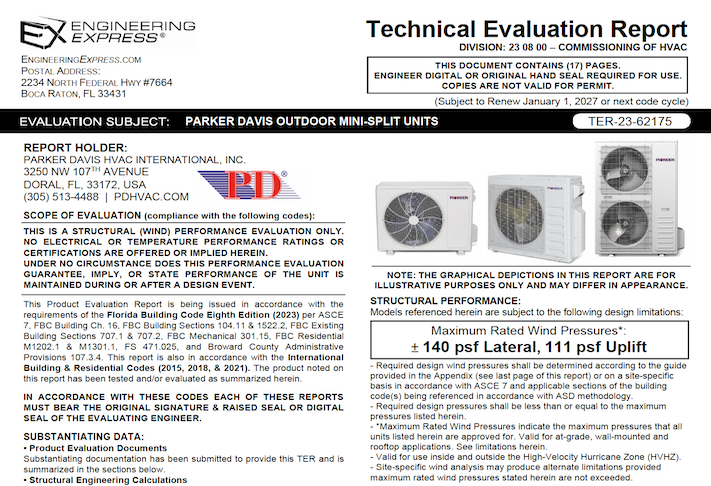

This document is sold as an engineer-certified report for permitting PARKER DAVIS: Outdoor Mini-Split Units meeting model numbers listed below. The document meets the requirements of the structural wind integrity per the selected building code above using ASCE 7 for the structural approval of unit housing and tie-down clip capacities. This report will be signed and sealed by a Professional Engineer of the firm when purchased and delivered to you via email (using the digital seal method, within 24 hours) or mail (UPS Ground for printed and signed hardcopies, next day in South Florida). Use it with your site-specific documents to obtain a building permit.

Digitally certified documents are licensed to the provided contractor and zip code up to the time frame listed. For extensions beyond that date, use the Online Chat to request an extension.

This report applies to the following model numbers:

Model Number Unit Dimensions (in) [mm]
Width  Depth Height
YH1824GHFD18R2 33.86 [860] 12.20 [310] 26.38 [670]
YH3036GHFD18R2 43.7 [1110] 18.11 [460] 36.22 [920]
YH4248GHFD18R2 43.7 [1110] 18.11 [460] 60.24 [1530]
YH4860GHFD18R2 43.7 [1110] 18.11 [460] 60.24 [1530]
YN009ALFI19RPE 28.15 [715] 11.42 [290] 19.61 [498]
YN009ALFI22RPD 28.66 [728] 12 [305] 21.65 [550]
YN009AMFI20RPD 30.12 [765] 11.93 [303] 21.85 [555]
YN009AMFI22RPE 30.12 [765] 11.93 [303] 21.85 [555]
YN009GHFI25RPH 31.89 [810] 11.02 [280] 23.03 [585]
YN009GLFI19RPE 28.15 [715] 11.42 [290] 19.61 [498]
YN009GLFI22RPD 28.66 [728] 12 [305] 21.65 [550]
YN009GMFI20RPD 30.12 [765] 11.93 [303] 21.85 [555]
YN009GMFI22RPE 30.12 [765] 11.93 [303] 21.85 [555]
YN012ALFI19RPE 28.15 [715] 11.42 [290] 19.61 [498]
YN012ALFI22RPD 28.66 [728] 12 [305] 21.65 [550]
YN012AMFI20RPD 30.12 [765] 11.93 [303] 21.85 [555]
YN012AMFI22RPE 30.12 [765] 11.93 [303] 21.85 [555]
YN012GHFI25RPH 31.89 [810] 11.02 [280] 23.03 [585]
YN012GLFI19RPE 28.15 [715] 11.42 [290] 19.61 [498]
YN012GLFI22RPD 28.66 [728] 12 [305] 21.65 [550]
YN012GMFI20RPD 30.12 [765] 11.93 [303] 21.85 [555]
YN012GMFI22RPE 30.12 [765] 11.93 [303] 21.85 [555]
YN018GHFI25RPH 33.86 [860] 12.20 [310] 25.59 [650]
YN018GLFI19RPE 30.71 [780] 13.74 [349] 23.82 [605]
YN018GLFI22RPD 33.27 [845] 14.96 [380] 27.52 [699]
YN018GMFI20RPD 31.69 [805] 12.99 [330] 21.81 [554]
YN018GMFI22RPE 35 [890] 13.46 [342] 26.5 [673]
YN020GLFI22M2D 33.27 [845] 14.96 [380] 27.52 [699]
YN020GMFI22M2E 35 [890] 13.46 [342] 26.5 [673]
YN024GHFI25RPH 35.43 [900] 13.39 [340] 29.53 [750]
YN024GLFI19RPE 33.27 [845] 14.96 [380] 27.52 [699]
YN024GLFI22RPD 35.83 [910] 15.63 [397] 31.69 [805]
YN024GMFI20RPD 35 [890] 13.46 [342] 26.5 [673]
YN024GMFI22RPE 37.24 [946] 16.14 [410] 31.89 [810]
YN030GLFI22M3D 35.43 [900] 14.17 [360] 31.69 [805]
YN030GMFI20RPD 37.24 [946] 16.14 [410] 31.89 [810]
YN030GMFI22M3E 37.24 [946] 16.14 [410] 31.89 [810]
YN036GLFI19RPE 35.43 [900] 16.53 [420] 31.69 [805]
YN036GMFI18RUE 37.24 [946] 16.14 [410] 35.83 [910]
YN036GMFI20RPD 37.24 [946] 16.14 [410] 31.89 [810]
YN040GLFI22M4D 39.57 [1005] 15.75 [400] 35.83 [910]
YN040GMFI22M4E 37.24 [946] 16.14 [410] 31.89 [810]
YN048GMFI18RUE 37.48 [952] 16.34 [415] 52.48 [1333]
YN050GLFI22M5D 39.57 [1005] 15.75 [400] 35.83 [910]
YN050GMFI22M5E 37.48 [952] 16.34 [415] 52.48 [1333]

What is a TER and how is it used for permitting?

What’s the difference between a TER and a Miami Dade NOA or FL Product Approval?

What do I do if a TER isn’t enough for a permit?

What Doesn’t a TER Do?

Read More
Please select the state you would like the document certified in
This field can't be Empty
This field can't be Empty
This field can't be Empty
Save up to an additional 33% by using tokens Learn more
View Sample

Read Disclaimer & Important Information for Use
Weight 1 lbs
Dimensions 0.072 × 17 × 11 in
Plan Format

Digitally Sealed E-Permit File, Raised Sealed Hardcopy
Plan Type

Technical Evaluation Report-TER
Brand

Parker Davis
