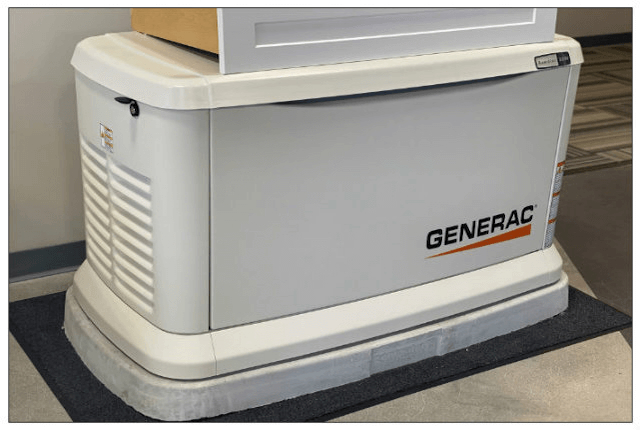

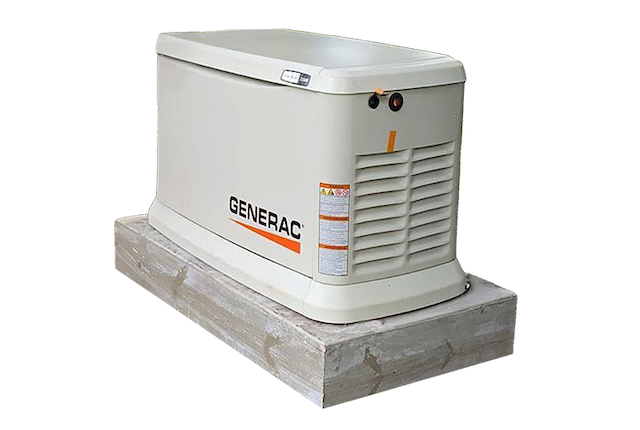

Precast Pads: Solid Concrete Generator Pad 32 x 54 x 6 To 48 Inches Performance Evaluation
Precast Pads: Solid Concrete Generator Pad 32 x 54 x 6 To 48 Inches Performance Evaluation
$60.00 or ( 6 Tokens )
This certification applies to the Precast Pads: Solid Concrete Generator Pad 32 x 54 x 6 To 48 Inches Performance Evaluation Report. It is sold as an engineered sealed document and meets the requirements of the applicable building code using ASCE 7-16 & ASCE 7-22 for the approval of structural adequacy only. Use it in conjunction with your other approved documents to obtain a building permit.
This certification is sold as an engineered sealed document and meets the requirements of the current Building Codes in the state selected. It is generic, and installations beyond the scope and limitations of this document shall require site-specific engineering. (Former Plan #21-32145)
Please note: These plans are certified for Florida ONLY.
Installation variations and site-specific drawings outside the scope of this plan can be quoted using our online smart request form by clicking here.
Brand and Models Covered With This Plan:
COMPANY | Capacity | MODEL | DIMENSIONS (IN) | MIN. WEIGHT (LBS) | ||
WIDTH | LENGTH | HEIGHT | ||||
GENERAC | 10 KW | 005871 & 005883 | 25.0 | 48.0 | 28.8 | 387 |
GENERAC | 14 KW | 005872 & 005884 | 25.0 | 48.0 | 28.8 | 439 |
GENERAC | 16 KW | 7035, 7036, 7037 | 25.0 | 48.0 | 28.8 | 406 |
GENERAC | 16 KW | 007176 & 7178 | 25.5 | 48.5 | 28.6 | 420 |
GENERAC | 16 KW | 006721 | 25.0 | 48.0 | 28.8 | 448 |
GENERAC | 16 KW | 6459, 6461, 6462 | 25.0 | 48.0 | 28.8 | 513 |
GENERAC | 17 KW | 005874 & 005886 | 25.0 | 48.0 | 28.8 | 421 |
GENERAC | 17 KW | 005873 & 005885 | 25.0 | 48.0 | 28.8 | 455 |
GENERAC | 20 KW | 007038 & 007039 | 25.0 | 48.0 | 28.8 | 448 |
GENERAC | 20 KW | 005875 & 005887 | 25.0 | 48.0 | 28.8 | 451 |
GENERAC | 20 KW | 006729 & 006730 | 25.0 | 48.0 | 28.8 | 516 |
GENERAC | 22 KW | 007042 & 7043 | 25.0 | 48.0 | 28.8 | 466 |
GENERAC | 22 KW | 006551 & 006552 | 25.0 | 48.0 | 28.8 | 526 |
GENERAC | 24 KW | 007209 & 7210 | 25.0 | 48.0 | 29.0 | 455 |
KOHLER | 20 KW | 14RES & 20RES | 26.0 | 48.0 | 28.8 | 500 |
Product Documents
Sample Documents
Weight | .48 lbs |
---|---|
Dimensions | 0.01 × 17 × 11 in |
Plan Format | Digitally Sealed E-Permit File, Raised Sealed Hardcopy |
Plan Type | Manufacturer Plans, Performance Evaluation Report |
Material | Concrete |
Brand | PrecastPads |
Plan Designer | Engineering Express |
Storefront | precastpads, Engineering Express |
Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
