Royce Company: Air Brace

$40.00$80.00 or ( 4 Tokens - 8 Tokens )

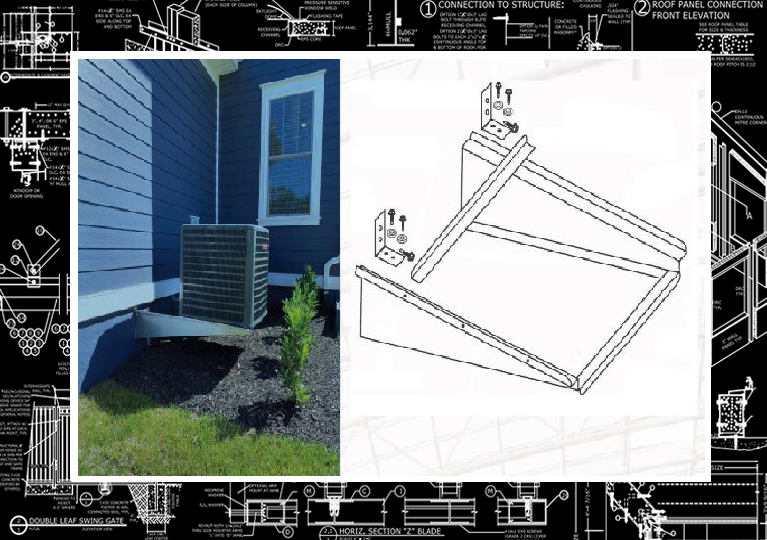

This air brace is available for purchase as a sealed drawing to certify the structural components of Royce Company Air Brace.  Use it in conjunction with your other approved documents to obtain a building permit.

Note: The host structure, vibratory loads, connection & integrity of the A/C unit are outside the scope of this certification. Performance evaluation is for gravity and wind structural loads only for site-specific installations within the limitations of this plan as determined by others.

We are not responsible for connecting to the host structure & only provide a guideline of anchors to their base allowable capacities. The integrity of all supporting surfaces is by others.

Installation variations and site-specific drawings outside the scope of this plan can be quoted using our online smart request form by clicking here.


The document you are purchasing is a generic performance evaluation. Use of this document for any site-specific application is the responsibility of others. Installations beyond the performance limitations listed within the purchased document, any site-specific designs/certifications, or California-specific projects shall require custom engineering and invalidate the use of this evaluation. Learn more about the use of this document

Click here to request a quote for us to provide these services, which can also be provided by others who would then become responsible for the applicability of this evaluation. Contact Us if there are any questions and always consult with a design professional before using any generic performance evaluations with your project.
This field can't be Empty
This field can't be Empty

Weight 1 lbs
Dimensions 11 × 17 × 1 in
Plan Format

Digitally Sealed File, Sealed Hardcopy



Plan Type

Master Plan Sheet – MPS, Manufacturer Plans

Plan Designer

Engineering Express
